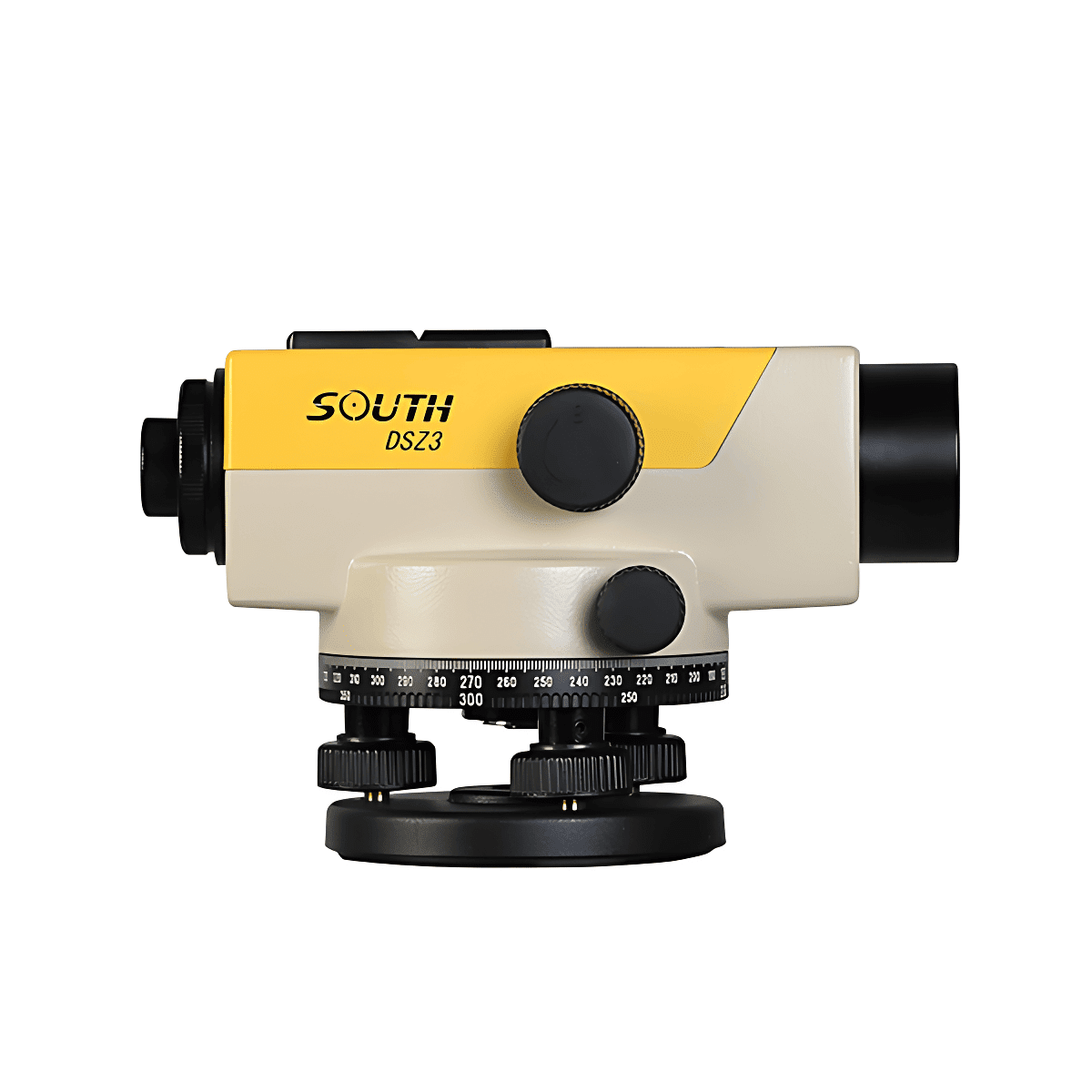

South DSZ3 Auto Level
- 28X High-resolution telescope
- Magnetically-damped compensation ±0.4” Compensator accuracy
- Standard deviation in 1.5mm
- Wearable aluminum axis
- Outstanding protection in IP65
Contact us for more information
- Description
Compensator
- The center technology of auto level is the compensator.
- Hi-Q electronic wire from Switzerland ensure the stability of compensator, it will not be bent or deformed in your long-term working.
- The sheet metal at the bottom is the cornerstone of the whole compensator. It keeps the high accuracy for leveling
Metal Protection
- Excellent manufacturing design improve the quality to achieve the goal.
- The metal cover can isolate the effects from external magnetic field for a better performance.
Aluminum Axis
- The quality of raw material is the guarantee for product. After the hardening treatment, the aluminum axis keep a high consistency to ensure the wear resistance.
Barcode Staff for Digital Level
- NSA-50m Aluminum
- SSI-2m Fiberglass
- SI-2m Invar
Specification
| Auto Level | Magnification | 28x |
| Effective Objective Aperture | 40mm | |
| Image | Erect | |
| Reticle | Cross Reticle | |
| Field of View | 1°30′ (2.6m /100m) | |
| Minimum Focus Distance | 0.6m | |
| Multiplication Constant | 100 | |
| Additive Constant | 0 | |
| Compensator Type | Magnetic Damping | |
| Compensator Range | ±15′ | |
| Compensator Setting Time | ＜1s | |
| Compensator Setting Accuracy | ±0.4″ | |
| Standard 1km Deviation | 1.5mm | |
| Sensitivity of Bubble | 8′ /2mm | |
| Circle Graduation | 360° or 400 gon (Minimum 1°or 1 gon) | |
| Protection Class | IP65 | |
| Working Temperature | -20℃ ～ +50℃ | |
| Storage Temperature | -40℃ ～ +70℃ | |
| Net Weight per Unit | 1.9kg | |
| Package Size (4 PCS/CTN) | 440×320×440(mm) | |
| Gross Weight (4 PCS/CTN) | 14kg |
Note: all information above is subject to change without any prior notice.
