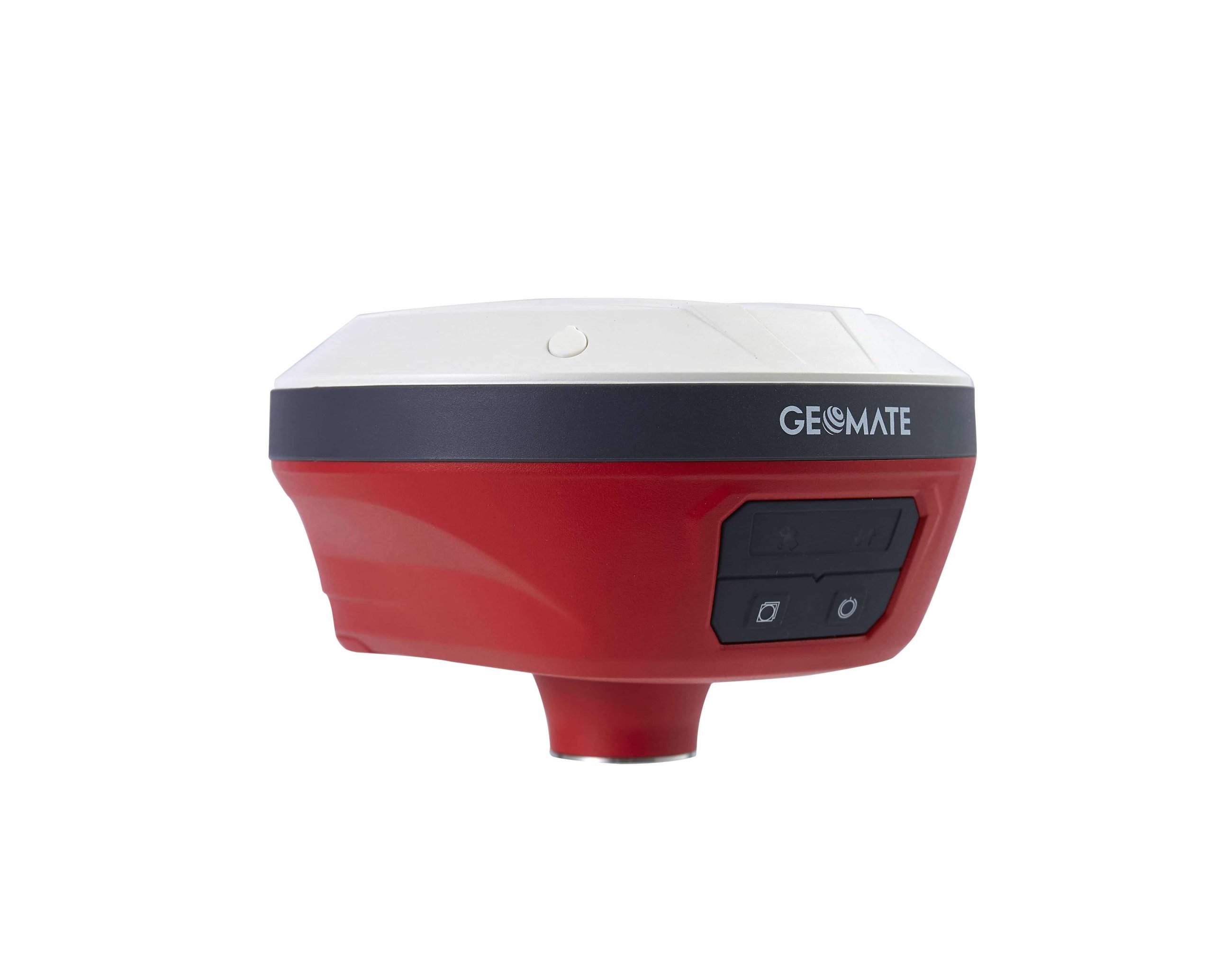

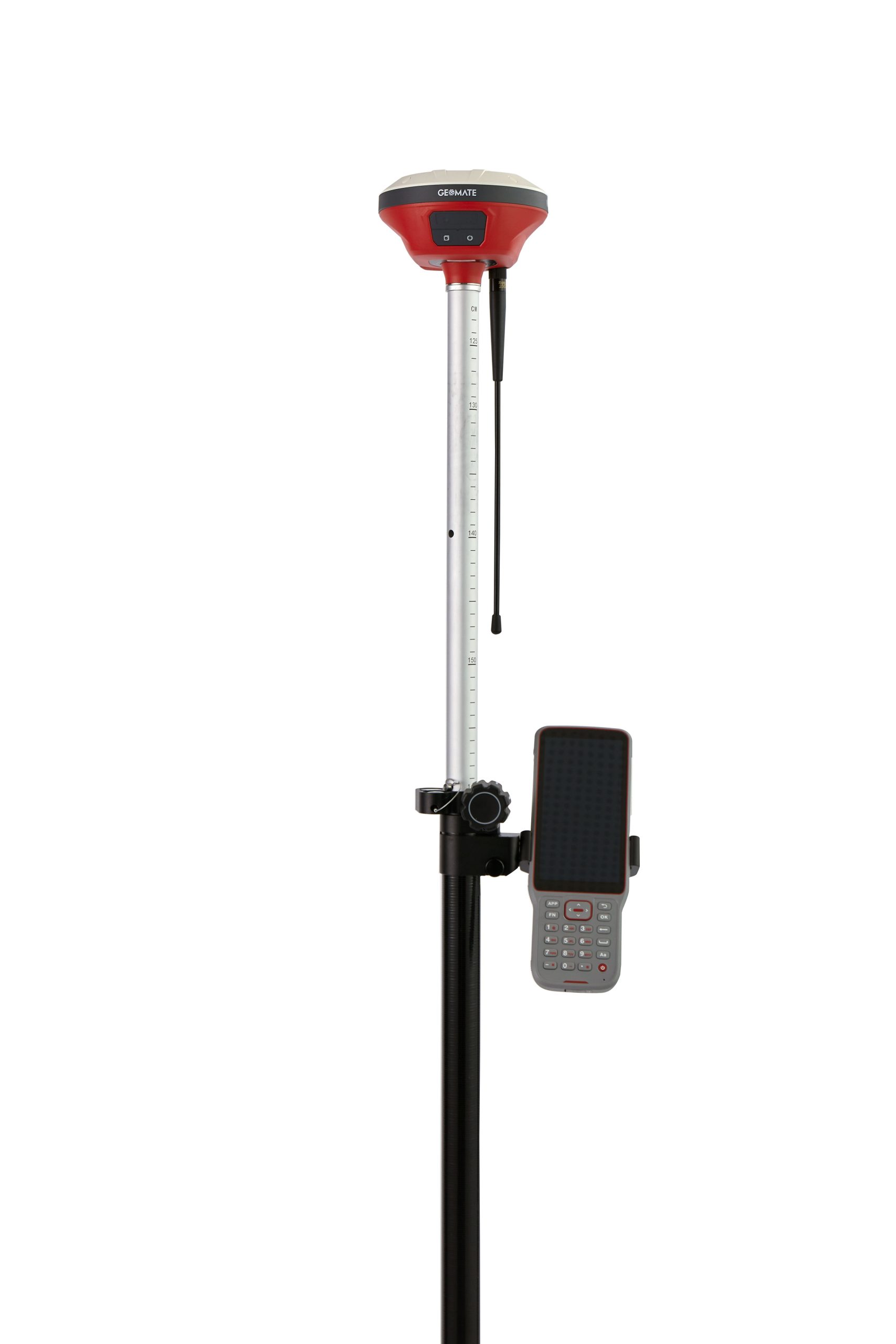

GEOMATE SG5 SMART GNSS IMU-RTK RECEIVER

Categories: GNSS Systems, Standalone Rovers & Base Stations, Survey Equipment

Channels: 1608-Channel GNSS Engine
Real time kinematic (RTK): Horizontal 8 mm + 1 ppm RMS, Vertical: 15 mm + 1 ppm RMS
Till Angle: 0-60°
UHF Radio Range: Typical 3 km, up to 8km with optimal conditions

Description

The GeoMate GNSS SG5 is the latest premium GNSS geodetic receiver made in Singapore. Designed to meet the highest standards, the SG5 is a high-performance 1608-channel IMU-RTK GNSS receiver that delivers the performance and reliability you need to survey your work sites with confidence.

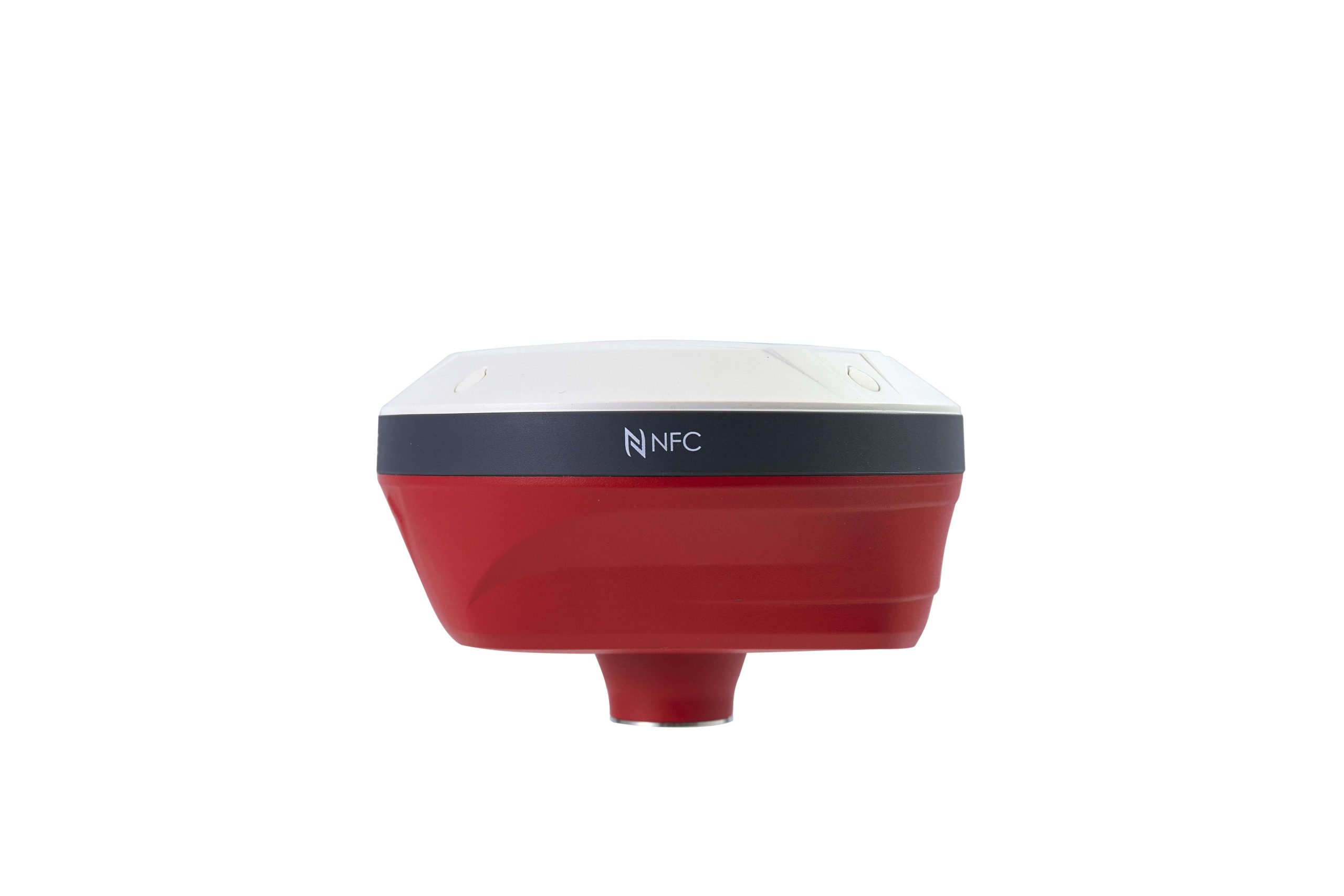

The SG5 has built-in connection modules including Wi-Fi, Bluetooth, NFC, UHF modem to support a variety of application scenarios, such as urban surveying and mapping, road infrastructure construction, urban utility development, housing construction and more.

Specification

GNSS Performance

Channels	1608 channels
GPS	L1C/A, L2C, L2P(Y), L5
GLONASS	L1, L2, L3*
Galileo	E1, E5a, E5b, E6*
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b*
QZSS	L1C/A, L1C, L2C, L5
NavIC/ IRNSS	L5
PPP	B2b-PPP, E6B-HAS
SBAS	EGNOS (L1, L5)

GNSS Accuracies

Real time kinematic (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: < 10 s
	Initialization reliability: > 99.9%
Post-processing kinematic (PPK)	Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS
PPP	Support PPP-B2b, E6B-HAS H: 10cm \| V: 20cm
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
Code diﬀerential	Horizontal: 0.4 m RMS Vertical: 0.8 m RMS
Autonomous	Horizontal: 1.5 m RMS Vertical: 2.5 m RMS
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to ﬁrst ﬁx	Cold start: < 45 s Hot start: < 10 s Signal re-acquisition: < 1 s
IMU update rate	200 Hz
Till angle	0-60°
RTK tilt-compensated	Additional horizontal pole-tilt uncertainty typically less than 8 mm + 0.7 mm/° tilt

Hardware

Size (LxWxH)	Φ119 mm x 85 mm (Φ4.69 in x 3.35 in)
Weight	0.73kg (1.61 lb)

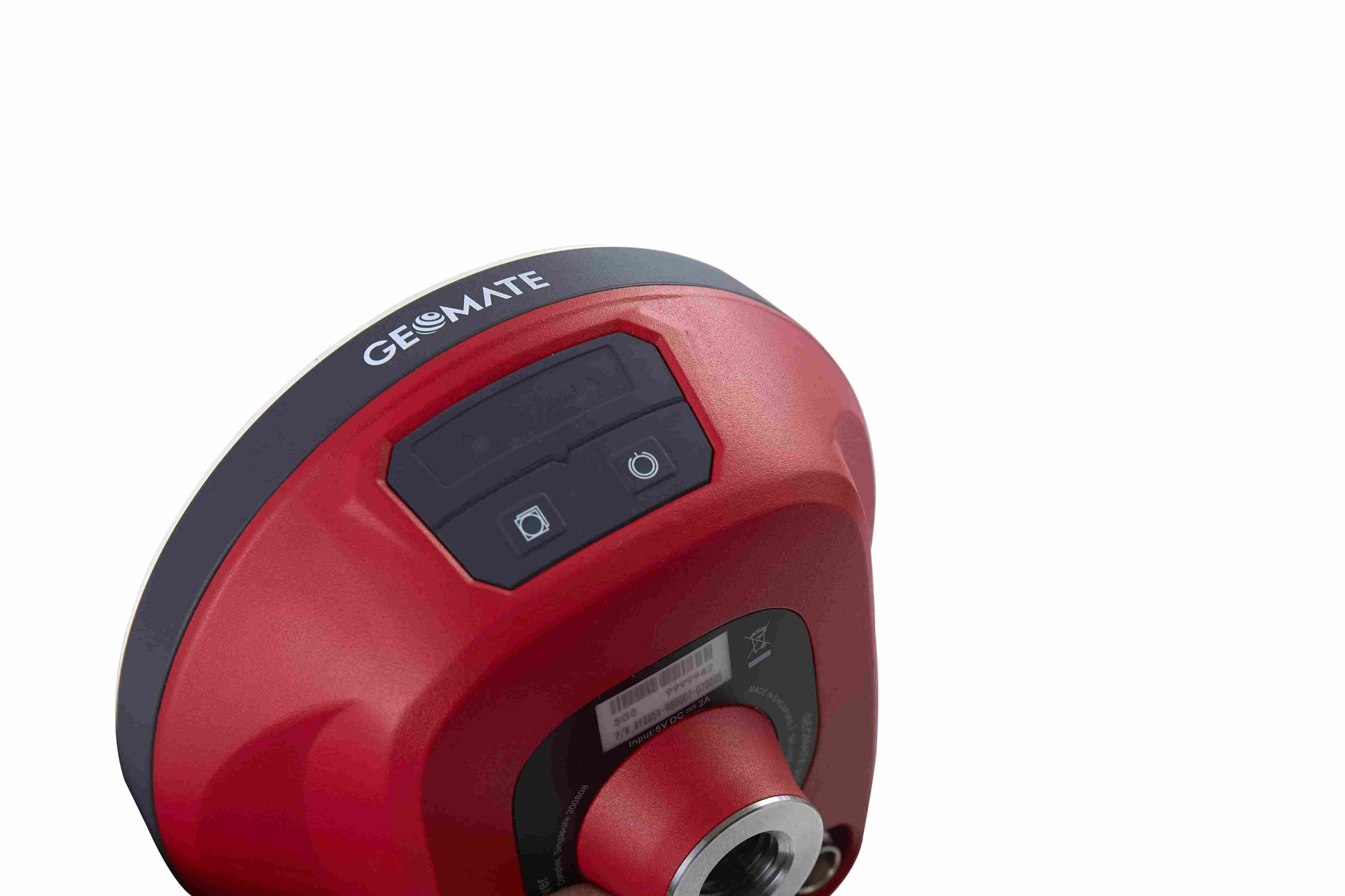

Front Panel	4 LED, 2 physical buttons
Environment	Operating: -40°C to +65°C (-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% non-condensation
Ingress protection	IP67
Shock	Survive a 2-meter pole drop
Tilt Sensor	Calibration-free IMU, E-Bubble leveling

Communication

Wi-Fi	802.11 b/g/n, access point mode
Bluetooth®	V4.2

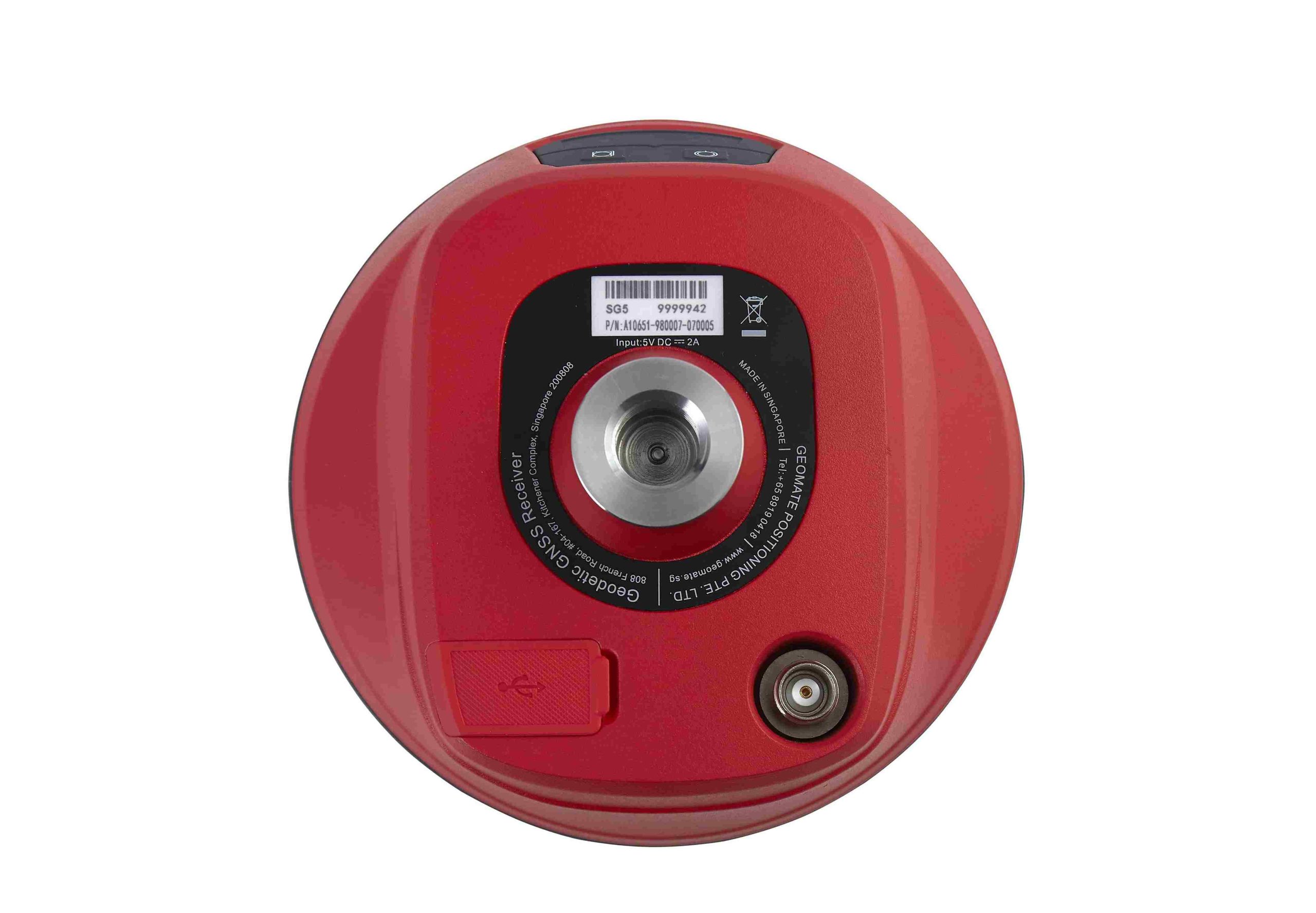

Ports	1 x USB Type-C port (external power, data download, firmware update) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410 – 470 MHz Transmit Power: 0.5 W, 1 W Protocol: Transparent, TT450, Satel Link rate: 9600 bps to 19200 bps Range: Typical 3 km,up to 8km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory

Electrical

Power Consumption	Typical 2.2 W (depending on user settings)
Li-ion Battery Capacity	Built-in non-removable battery 6,600 mAh, 7.2 V
Operating time on internal battery	UHF RTK Rover: up to 24h UHF RTK Base: up to 10.5 h Static: up to 25 h
