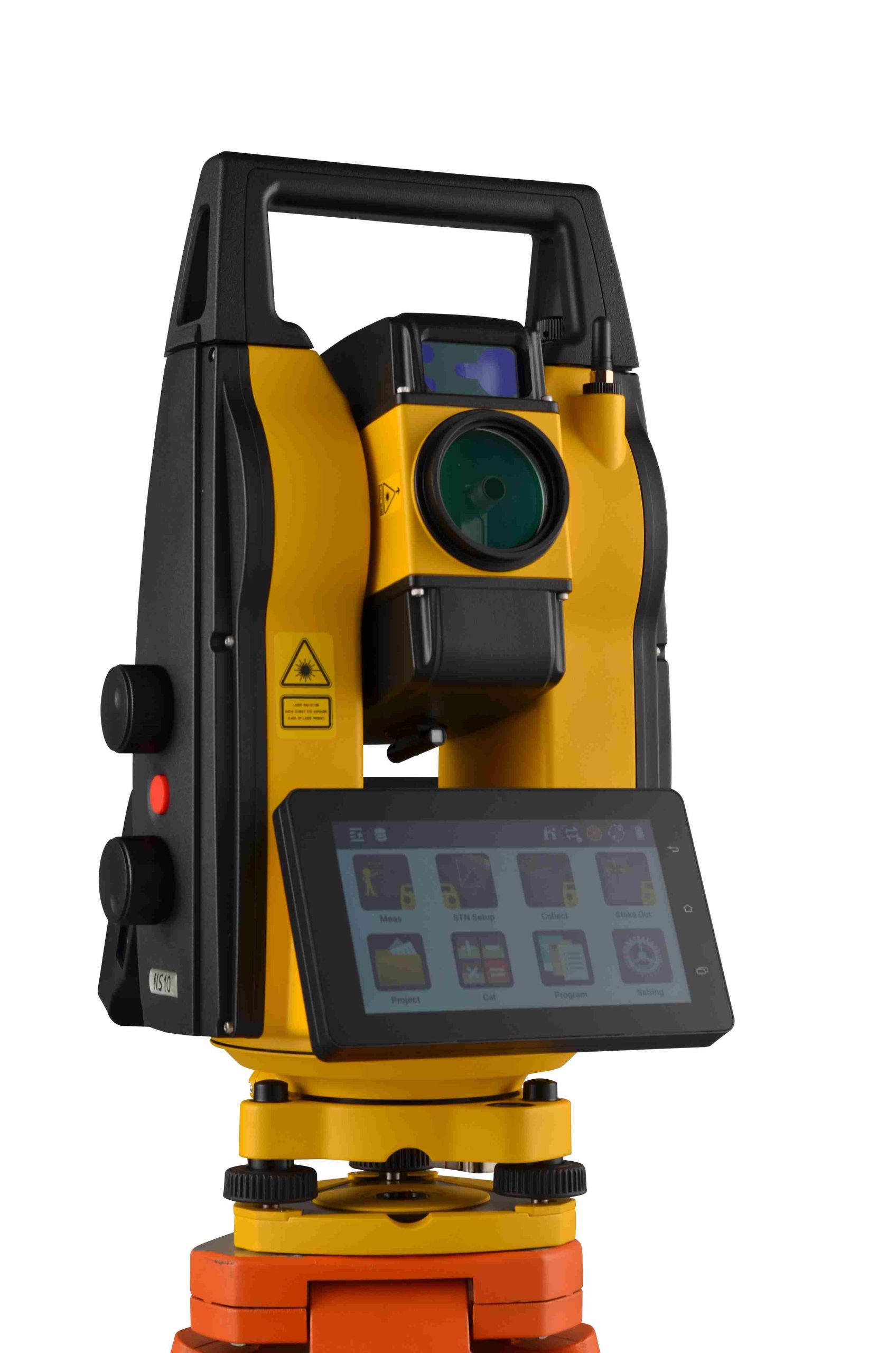

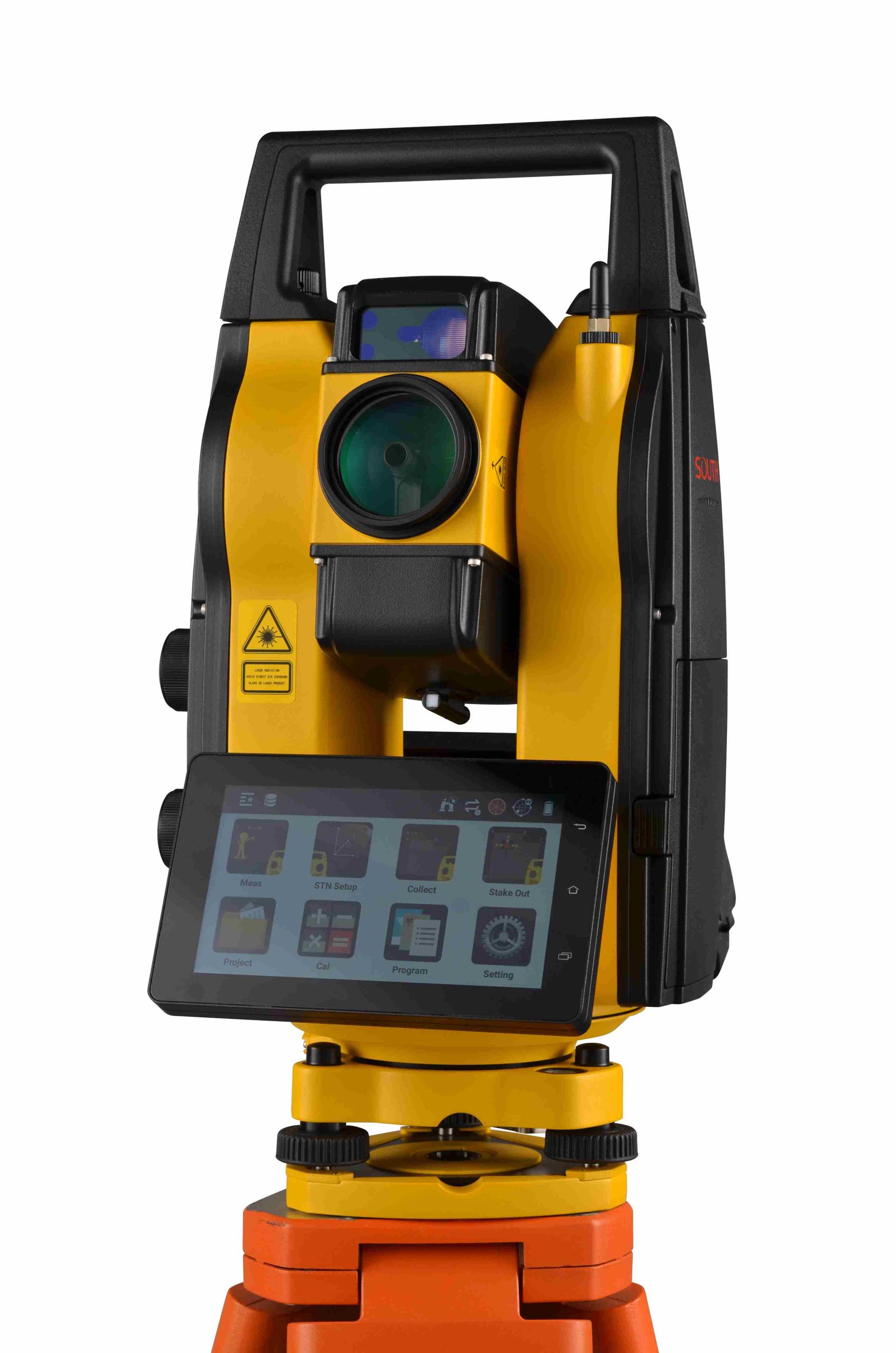

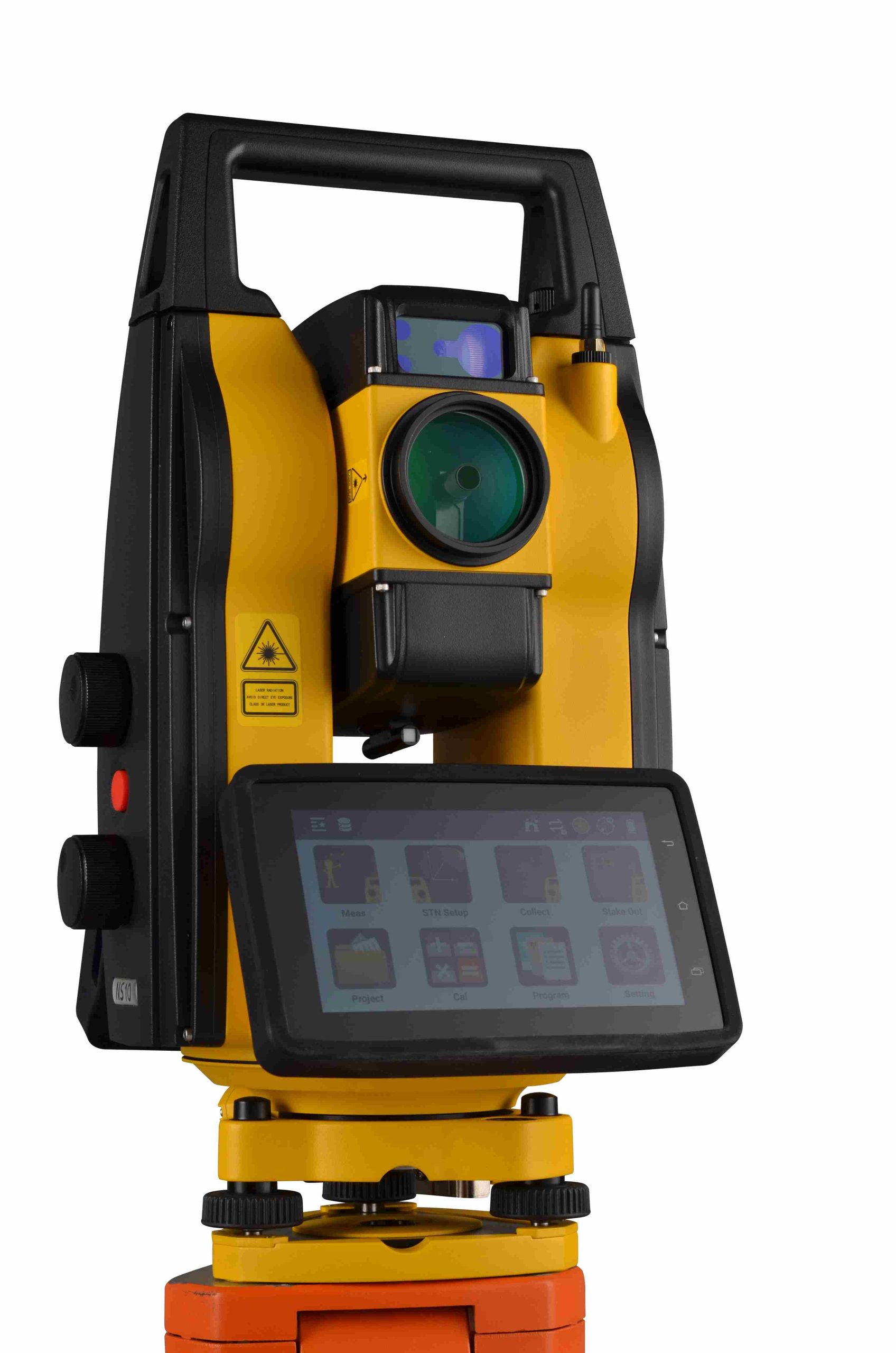

South NS10
- ONE PERSON SURVEY & MONITORING
- HIGH-SPEED, SILENT, SMOOTH T-DRIVE MOTOR
- 5”- 1″ ANGLE ACCURACY OPTIONAL
- PRISM SEARCH & LOCKNTRACK
- CAMERA&GUIDE LIGHT FOR DETECTION
-
Description
Prism Recognize
To recognize and measure the prism automatically in the sight of view in 1000m
Prism Search
Scan and detect the prism within 300m from the entire working site
LocknTRack
Follow and lock a moving prism at 20°/which eliminate the need for standing around
T-DRIVE MOTOR find Target Smooth
Rotation speed: 180°/s No noise, no touch, no wear Change face in 2.6s Longer life.
CAMERA & GUIDE LIGHT find Target Fast
To recognize and measure the prism automatically in the sight of view in1000m.With the improved APR algorithm, NS10 is able to recognize the prism in 15cm @100m under tough conditions.
FLEXIBLE CONECTIVITY Convenient To Transfer Data
NS10 offers superior connectivity with USB, Wi-Fi, Bluetooth, long-range Bluetooth, serial port, enabling effortless data exchange and remote control.
TABLET SUPPORT Suitable For Surveying And Mapping
8-inch display with 500 nits brightness ensures clear visibility, even in bright light. 600m remote control makes one-person operations efficient and effortless.
Specification
| Angle Measurement | Accuracy | 0.5″-1″ |
| Reading System | Absolute, four-quadrant | |
| Display Resolution | 0.1″ | |
| Angle Units | DMS 360°/GON 400/MILL 6.400 | |
| Telescope | Magnification/ Field of view | 30x/1°30′ |
| Tube Length | 164.5mm | |
| Minimum focus distance | 1.5m | |
| Objective aperture | 45 mm | |
| Laser pointer | Red light, coaxial | |
| Tilt Sensor | Type | Dual axis, liquid-electric sensor |
| Compensation range/ accuracy | ±4.0’/1″ | |
| Distance Measurement Range | Standard prism mode | 6000m |
| Reflectorless | 1000m | |
| Distance Measurement Accuracy | Standard prism mode | 1 mm+1 ppm |
| Reflectorless | 3mm + 2ppm | |
| Measurement Time | Standard prism mode (Tracking/Fine) | ＜0.3 /0.7 sec |
| Reflectorless | Typically 0.8 sec(>500 m, >5 sec) | |
| Distance Measurement | Distance Unit | m/US ft/INT ft |
| Display Resolution | 0.0001 m/0.001 m; 0.001 ft/0.01 ft | |
| Motorization | Technology | Tdrive |
| Max rotation speed | 180°/sec | |
| APR-Target Aiming Range | 1.5-1000m | |
| APR-Measurement Time | ＜10 sec | |
| PS-Target Aiming Range | 1.5-300m | |
| PS-Angle | H: 360°-V: ±20° | |
| AIM accuracy | ±1 mm @ 100 m | |
| Laser Plummet | Laser type | 635nm semiconductor laser |
| Accuracy | 1mm/1.5 m | |
| Spot | 士1.8mm/1.5 m | |
| Level Vial Sensitivity | Circular level | 8′/2mm |
| Environmental Conditions | Operating Temperature | -20℃ to +50℃(-4℉ to 122℉) |
| Storage Temperature | -20℃ to +60℃(-4℉ to 140℉) | |
| Waterproof/dustproof | IP65/IP66 | |
| Humidity | 95% non-condensing | |
| Physical Specification | Dimensions | 430 x 255 x 235 mm |
| Weight Including Battery And Tribrach | 9.3 kg | |
| Power | Cpu | MSM8953 |
| Display | Two sides, 6″ color LCD | |
| 720×1280 pixel touch screen | ||
| OS | Android 9 | |
| Memory | RAM:3GB, ROM:32GB | |
| Interface | RS232 | |
| Micro USB | ||
| Bluetooth long-range | ||
| Camera | √ | |
| Guide Light | √ | |
| Sensor | Temperature/Pressure | |
| Onboard Field Application Programs | Servo TS |
Note: all information above is subject to change without any prior notice.
