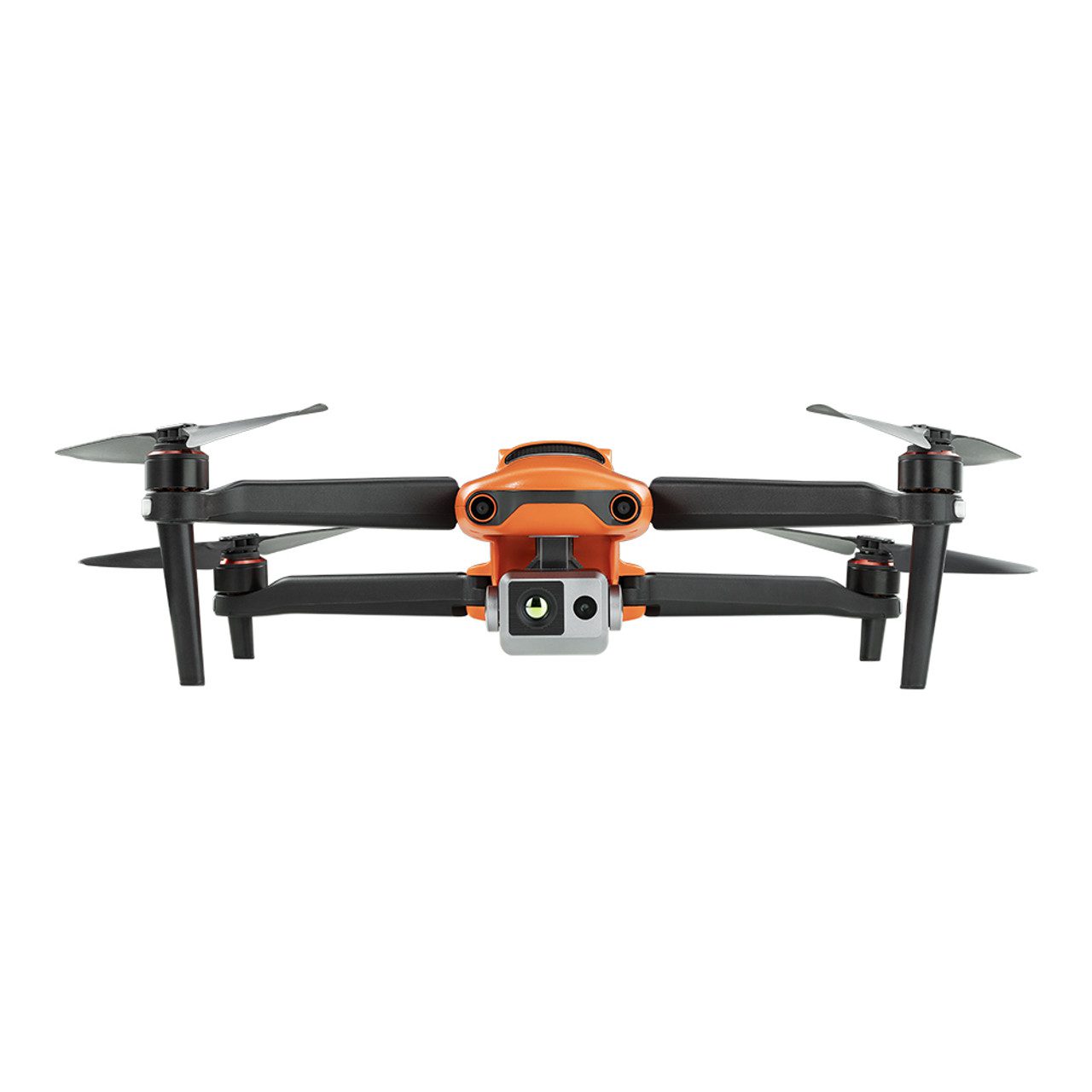

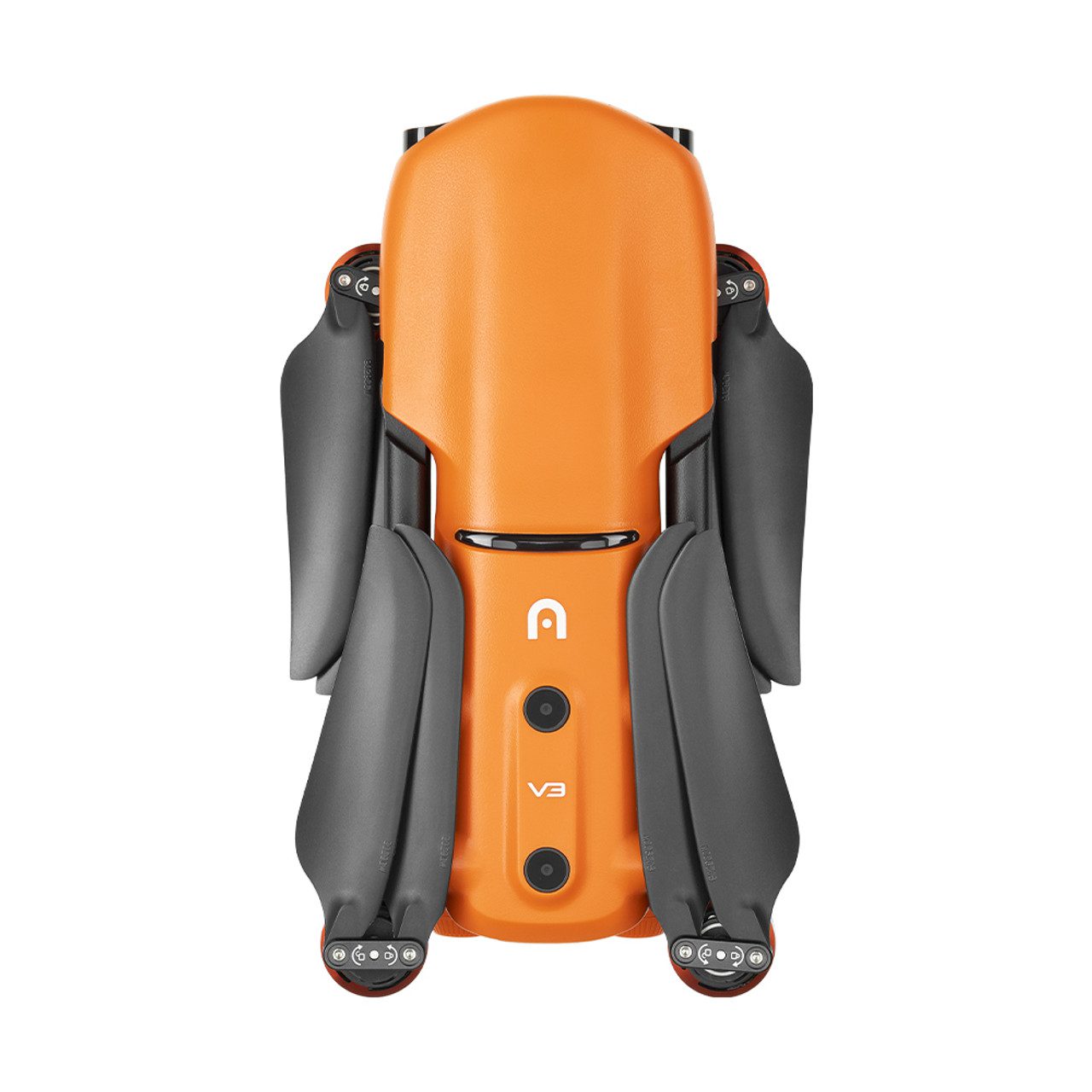

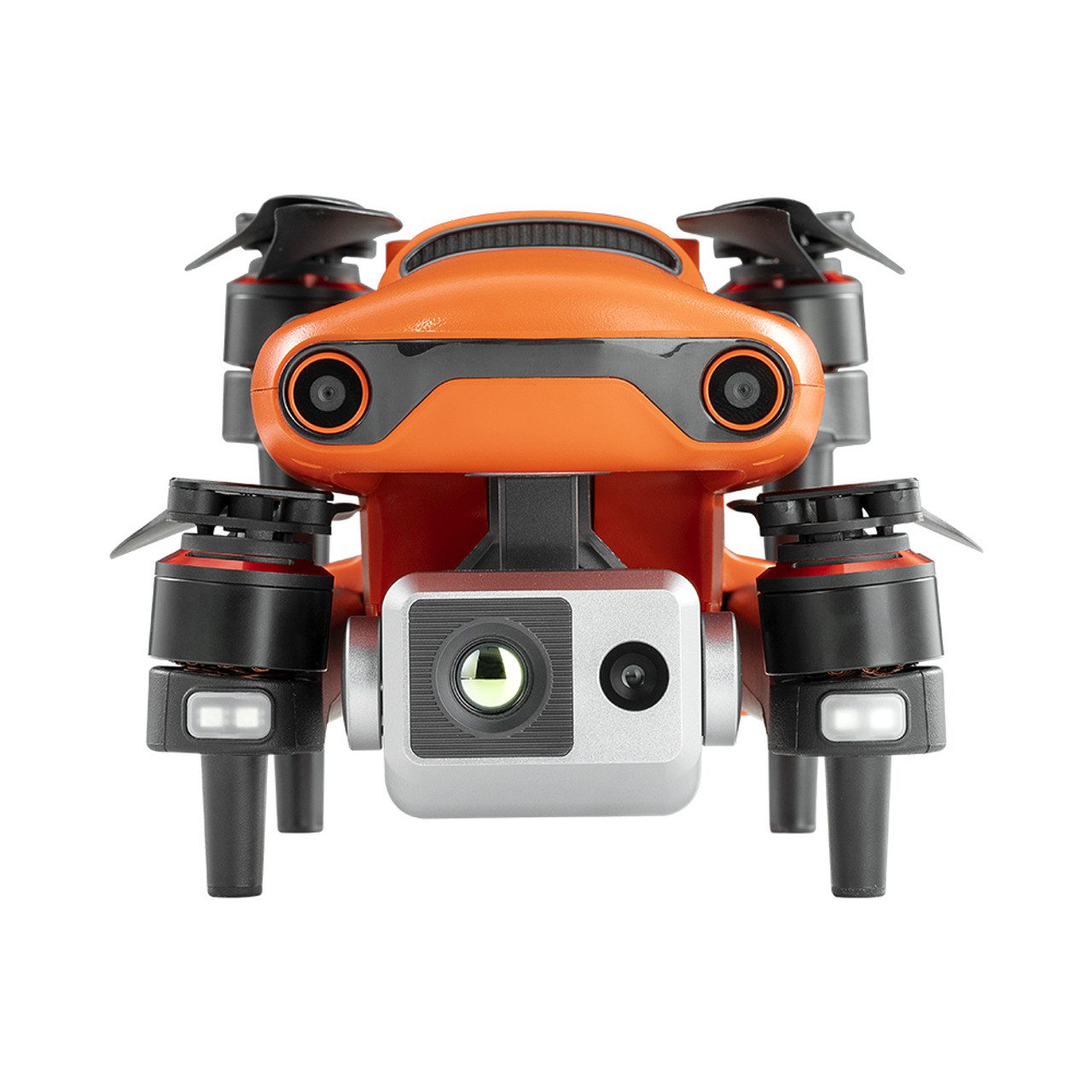

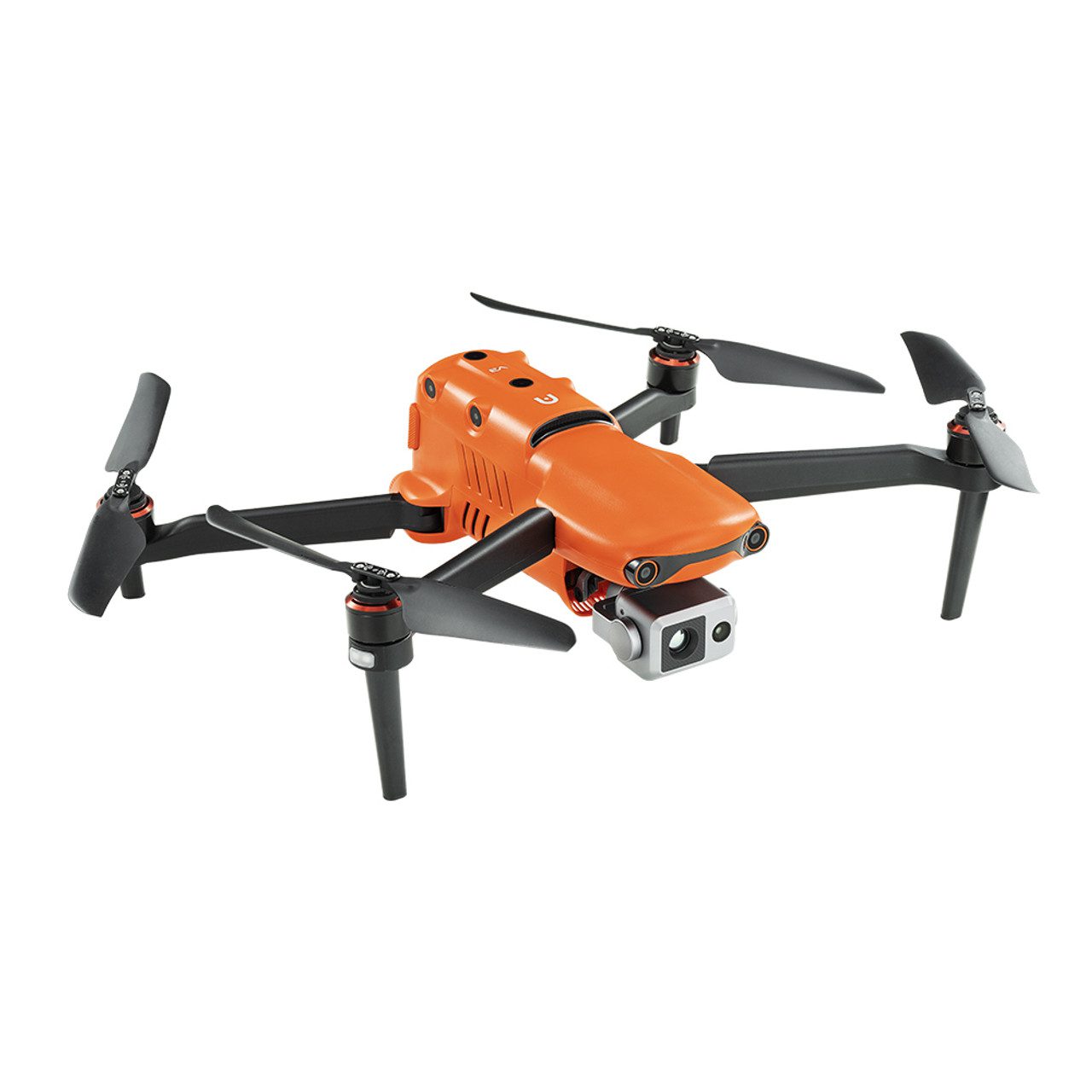

Autel EVO II Dual 640T Rugged Bundle V3

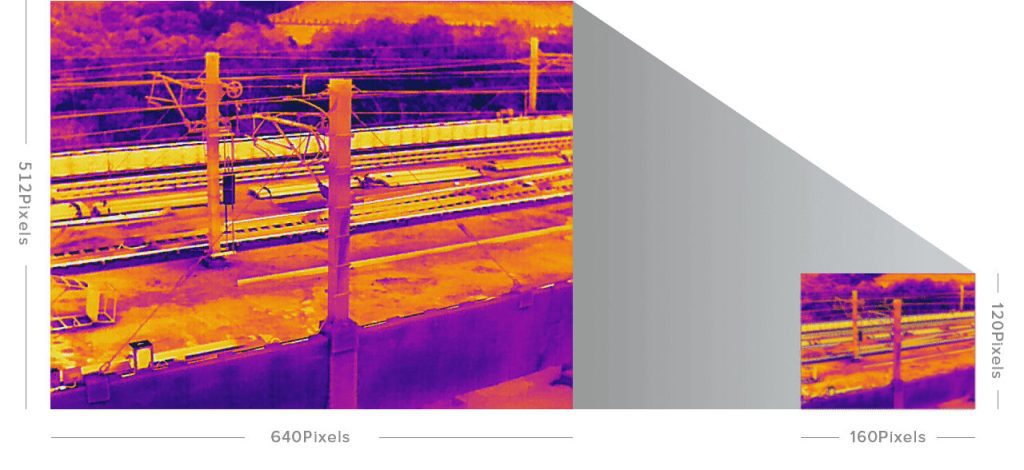

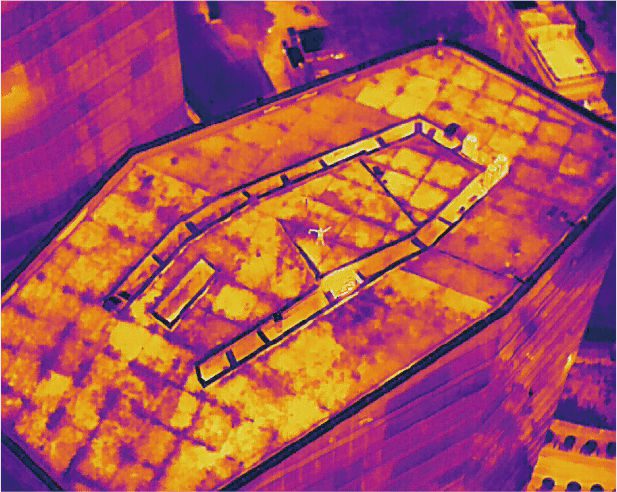

640×512 25Hz New Thermal Imaging Sensor

Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.

DRI Ranges

See a specific subject’s identity, activity, or personal items.

• Detection：Detect if an object is present.
• Recognition：See what type of object it is (i.e. person, vehicle, airplane).
• Identification：Determine subject affiliation and intent.

Multiple Temperature Measurement Modes

Central, Spot, And Regional Temperature Measurement

Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

Temperature Alarm with Isotherm and Image Enhancement

Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

10 Thermal Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

Picture-in-Picture Display Mode

Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.

Powerful Infrared Thermal Analysis Tool

IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

50MP Ultra-Sensitive Camera

The EVO II Dual 640T V3’s RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

0.8″ Sensor Size

The EVO II Dual 640T V3’s 0.8″ RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2″ or 1/2.3″ competitors for maximum details in high-contrast lighting conditions.

RYYB Sensor Technology

RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

PDAF+CDAF Autofocus System

Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

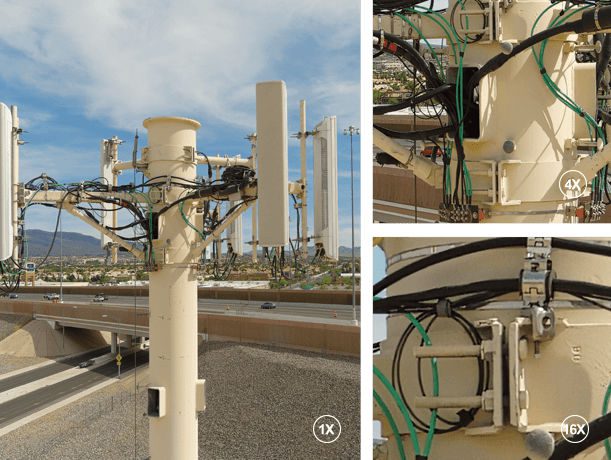

Get The Full Scene

The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.

4K HDR For Greater Dynamic Range

4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.

9+ Miles

Do more because you can fly further away.

QHD

Incredible video resolution within a mile, meeting most common use cases.

2.4GHz / 5.8GHz / 900MHz

Support tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

* 900MHz is only applicable for FCC countries.

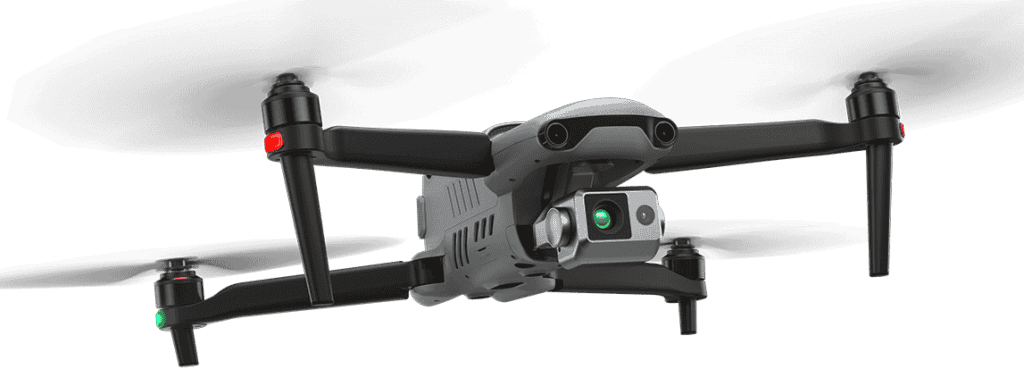

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Practical And Convenient Features

• Deploy Rapidly

Deploy in under a minute. The EVO II 640T V3 can go from its case to the air in 45 seconds.

• No Fly Zones*

EVO II Dual 640T V3 does not have any no-fly zones and will not prevent the pilot from taking off.

• No Forced Updates**

EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

• Non-ITAR

More export freedoms as the EVO II Dual 640T V3 is not under US’s International Traffic in Arms Regulations.

*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.
**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

Industry Leading Performance

• 38minutes

Maximum Flight Time

• 3miles (15km)

Maximum Transmission Range

• 27mph (12m/s)

Maximum Wind Speed Resistance

• 45mph (20m/s)

Maximum Flight Speed

• 2lbs (920g)

Maximum Lift Capability

Autel Smart Controller V3

Smart Controller V3’s 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

• 9-Inch HD Touch Screen
• -4 °F to 104 °F Temperature Range
• 2000 nits Maximum Brightness
• IP43 Resistance

Application

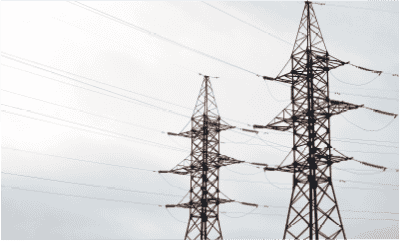

Line Inspections

Reduce costs, increase safety, and improve inspection workflow.

Firefighting

Locate hotspots, provide overwatch, and shorten response times.

Security

Perform overwatch, conduct forensics, accident reconstruction and crowd monitoring.

Search & Rescue

Identify subjects, reduce response times, and optimize search area with mission planning.

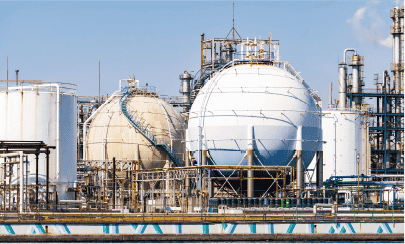

Chemical

Inspect plants more efficiently while improving work safety and lowering costs.

Solar

Streamline the inspection process, discover defects or faulty hardware using the thermal payload.
