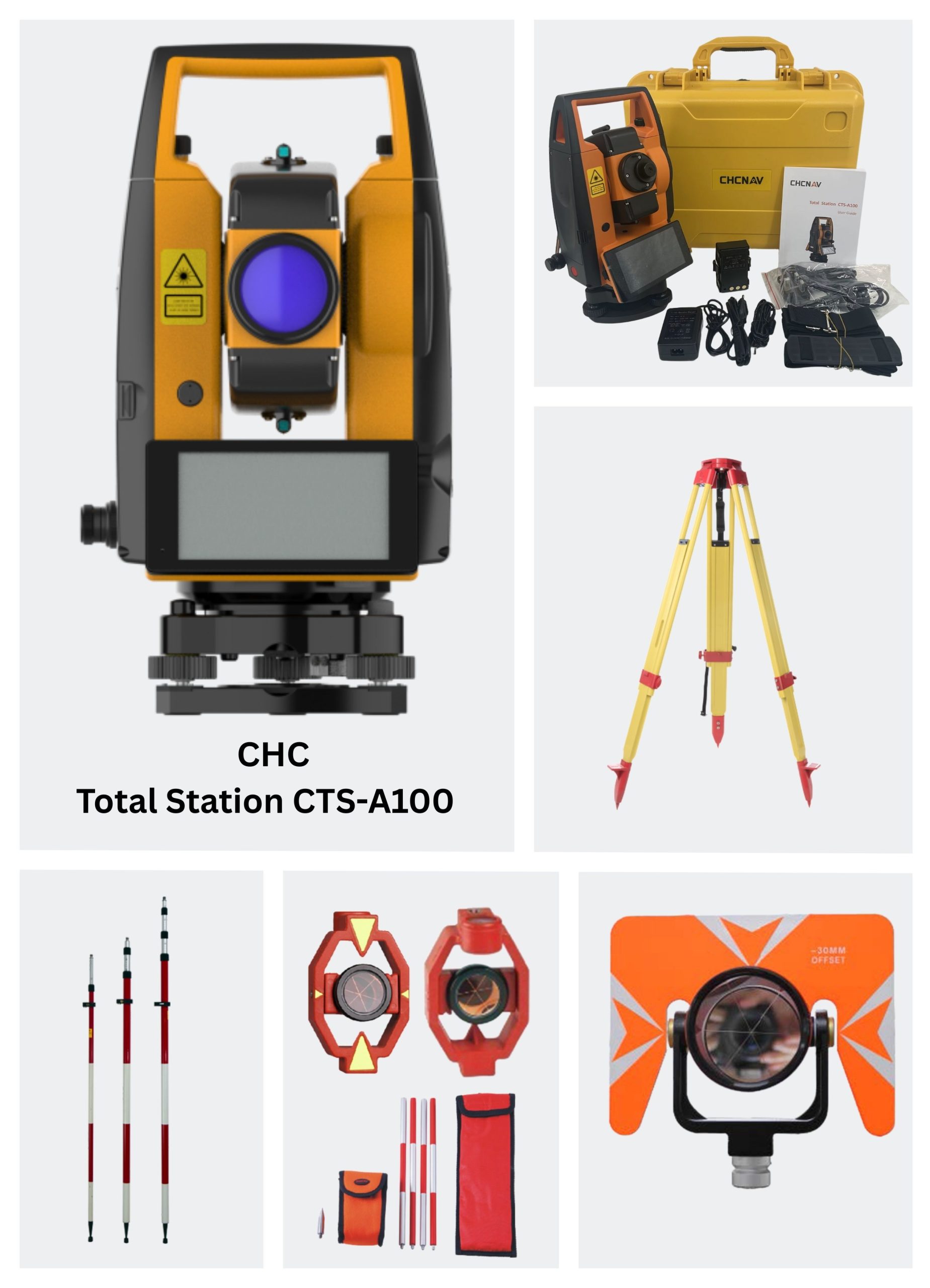

CHCNAV CTS-A100 Total Station (Full Set)

Categories: Survey Equipment, Total Stations

Android-Powered Total Station for Surveying and Engineering
2″ angular accuracy
Up to 1500 m in reflectorless mode
5″ HD display
Qualcomm octa-core processor

Description

Highlights

The CTS-A100 is a reflectorless total station optimized for efficient fieldwork, featuring the Android OS and CHCNAV's LandStar software for intuitive, high-performance surveying. Its powerful EDM system offers a range of 5000 m with a prism and 1500 m without a reflector. Its built-in Qualcomm octa-core processor ensures smooth operation. The CTS-A100 is perfect for everyday surveying tasks such as construction layout and topographic mapping, providing accurate and reliable data collection.

Benefits & Performance

High-Performance EDM
Achieve precise measurements with the CTS-A100’s EDM system, capable of measuring up to 5000 meters with a prism and 1500 meters in reflectorless mode. This range reduces the need for multiple setups, saving valuable time in the field.
Advanced Dual-Axis Compensation
The CTS-A100 includes a dual-axis electronic compensator for improved measurement stability, ensuring accurate results in uneven terrains. The digital electronic bubble makes leveling quick and easy, further streamlining the setup process.

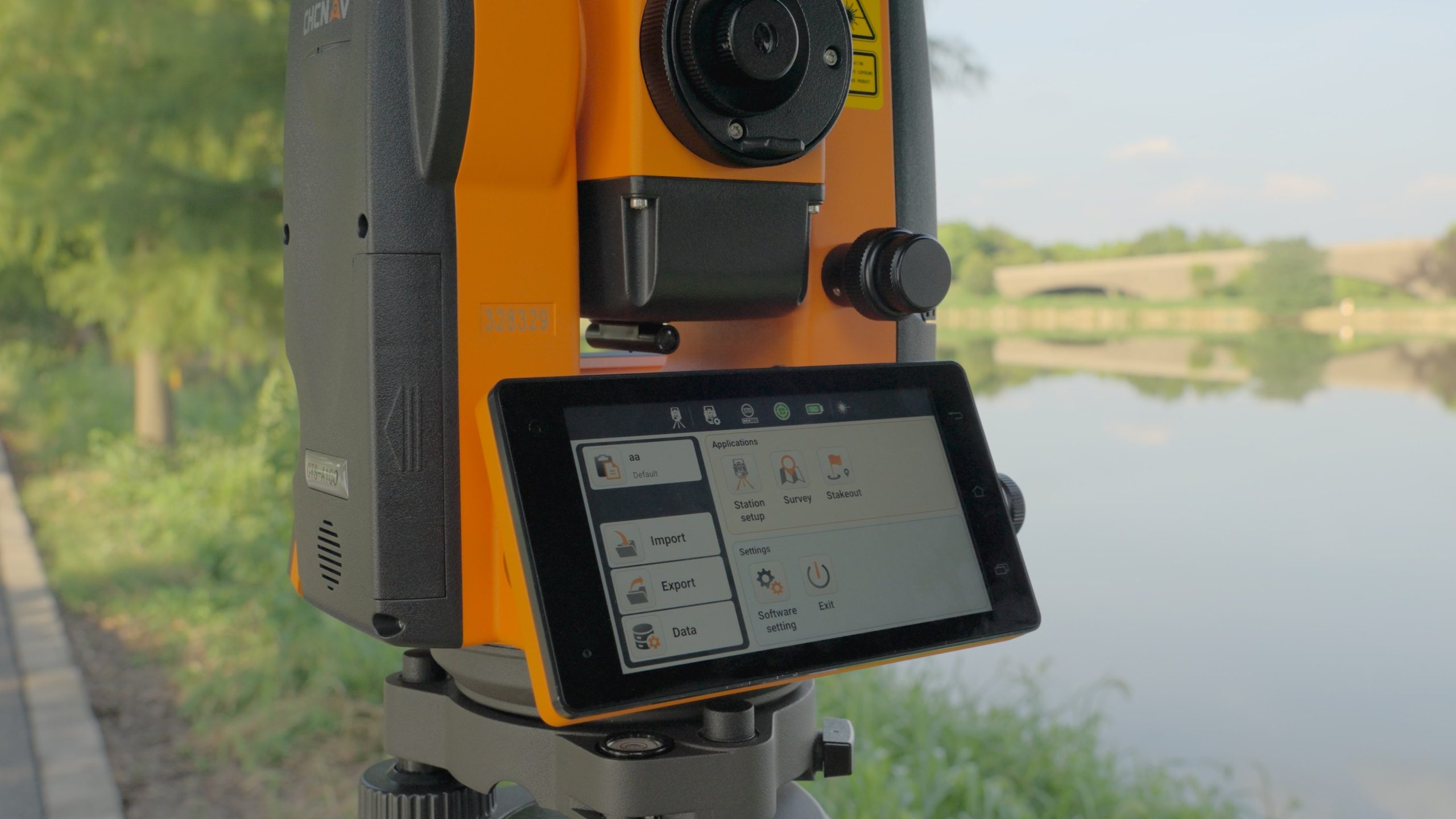

Integrated LandStar Software

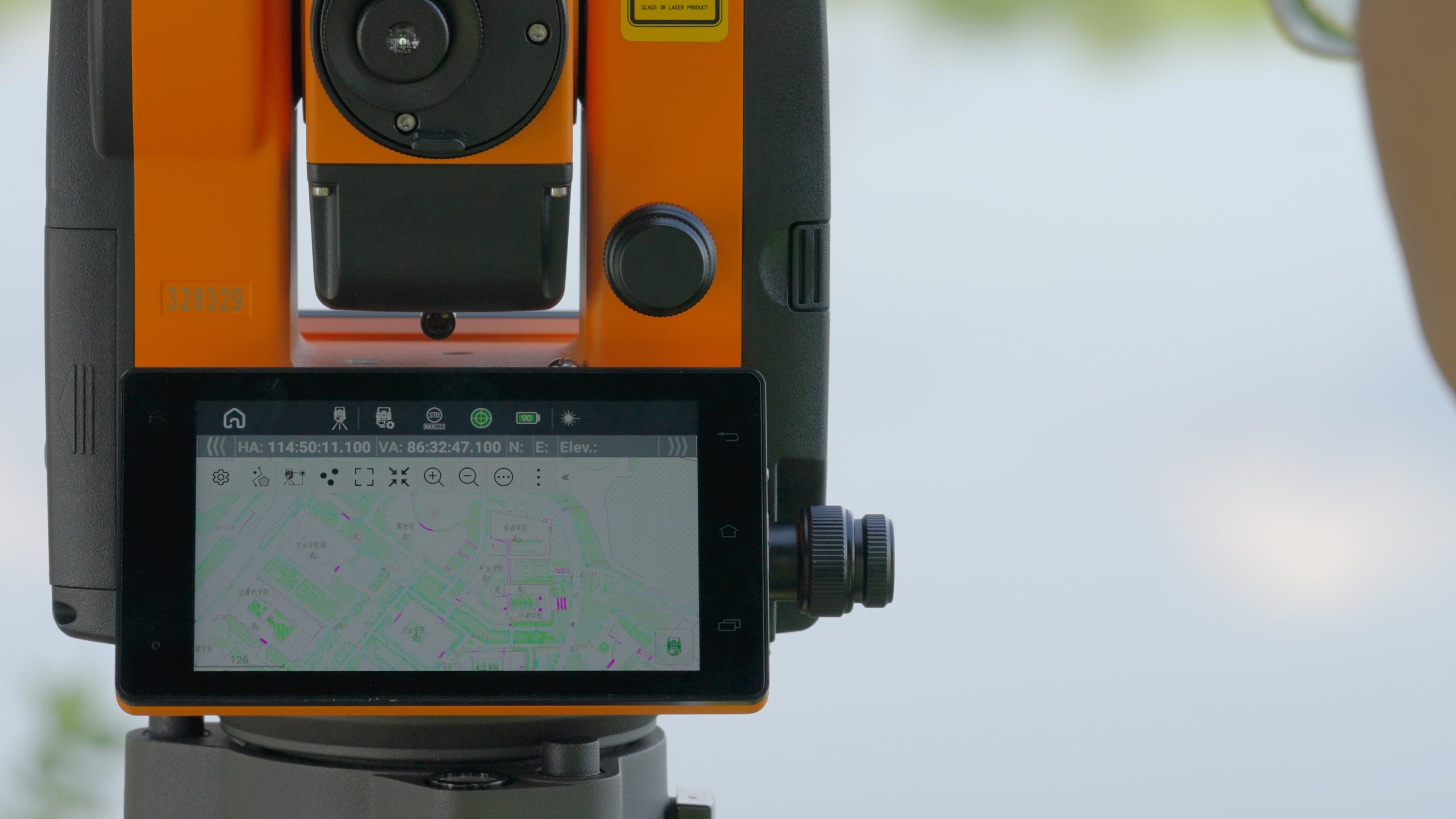

The CTS-A100 comes preloaded with LandStar software, enabling CAD-based stakeout and survey operations. The MetaCAD engine simplifies CAD tasks, allowing users to quickly access and modify base maps for faster, more accurate fieldwork.
Android-Based Operating System
The CTS-A100’s Android OS offers a user-friendly interface, allowing for easy customization and integration with third-party apps. It simplifies workflows with an intuitive design, enhancing the flexibility and efficiency of field operations.
Optimal User Experience
Powered by a Qualcomm octa-core processor, the CTS-A100 efficiently processes large datasets, ensuring quick and accurate measurements. The 5.0" HD display remains clear even under bright sunlight, improving readability and user experience.
Durable Design
Built for harsh field environments, the CTS-A100 is IP55-rated for dust and water resistance, ensuring reliability in tough conditions. Its rugged construction extends the instrument’s lifespan and reduces downtime due to weather-related issues.

Specifications

Measurements	Angular accuracy : 2" Range with prism : 5000 m max. Reflectorless range : 1500 max.
Display	Screen size : 5" Screen resolution : 1280 x 720
System	Operating System : Android
Physical	Weight : 5.5 kg Dimensions : 195 x 185 x 365 mm Battery life : Up to 8 hours
