See Through, Far and True
DJI’s next-generation high-accuracy aerial LiDAR system features a long-range LiDAR capable of reaching up to 950 m even on objects with just 10% reflectivity. Dual 100MP RGB mapping cameras and a high-precision POS system accelerate geospatial data acquisition, enabling daily coverage of up to 100 km² [2].
Hardware Performance Redefined

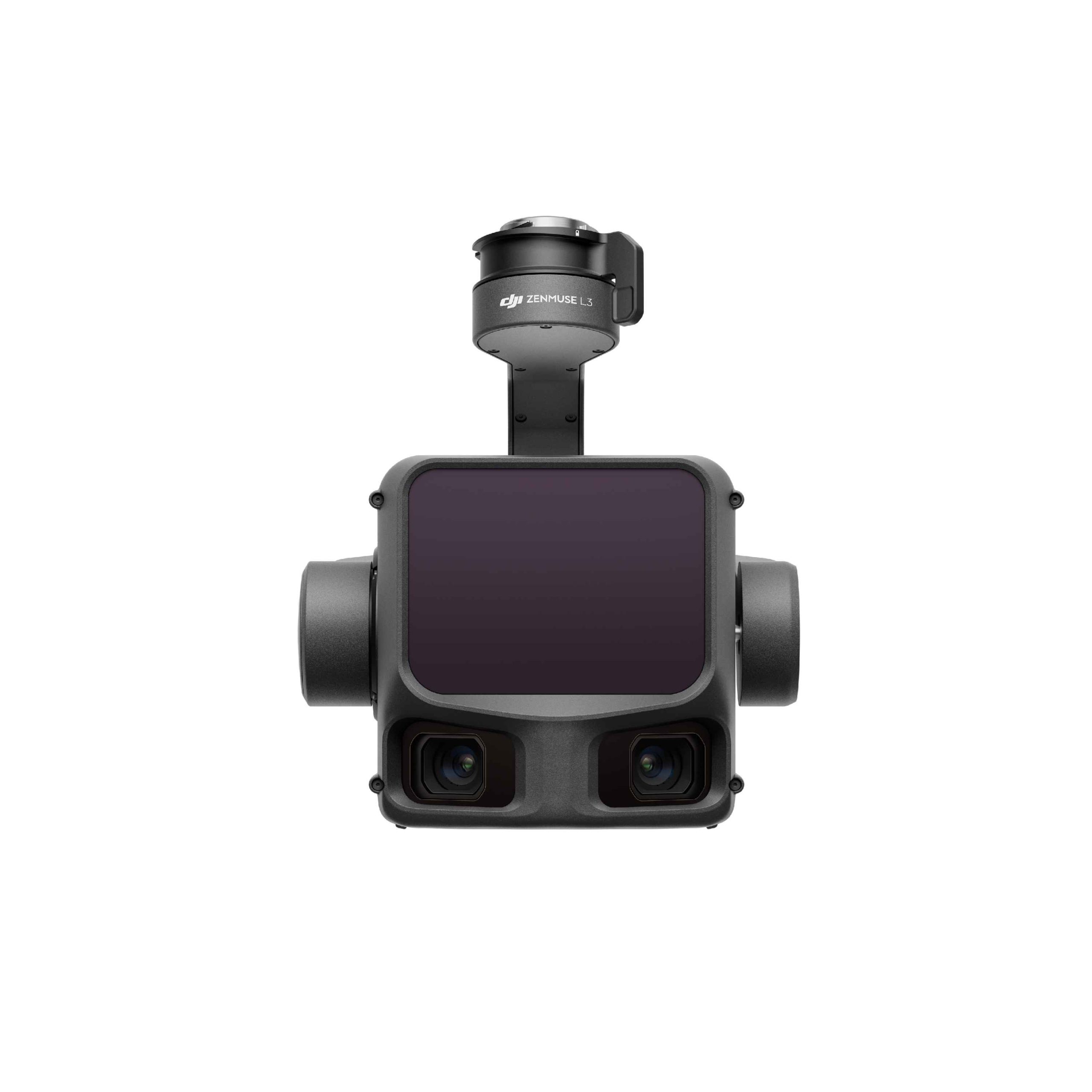

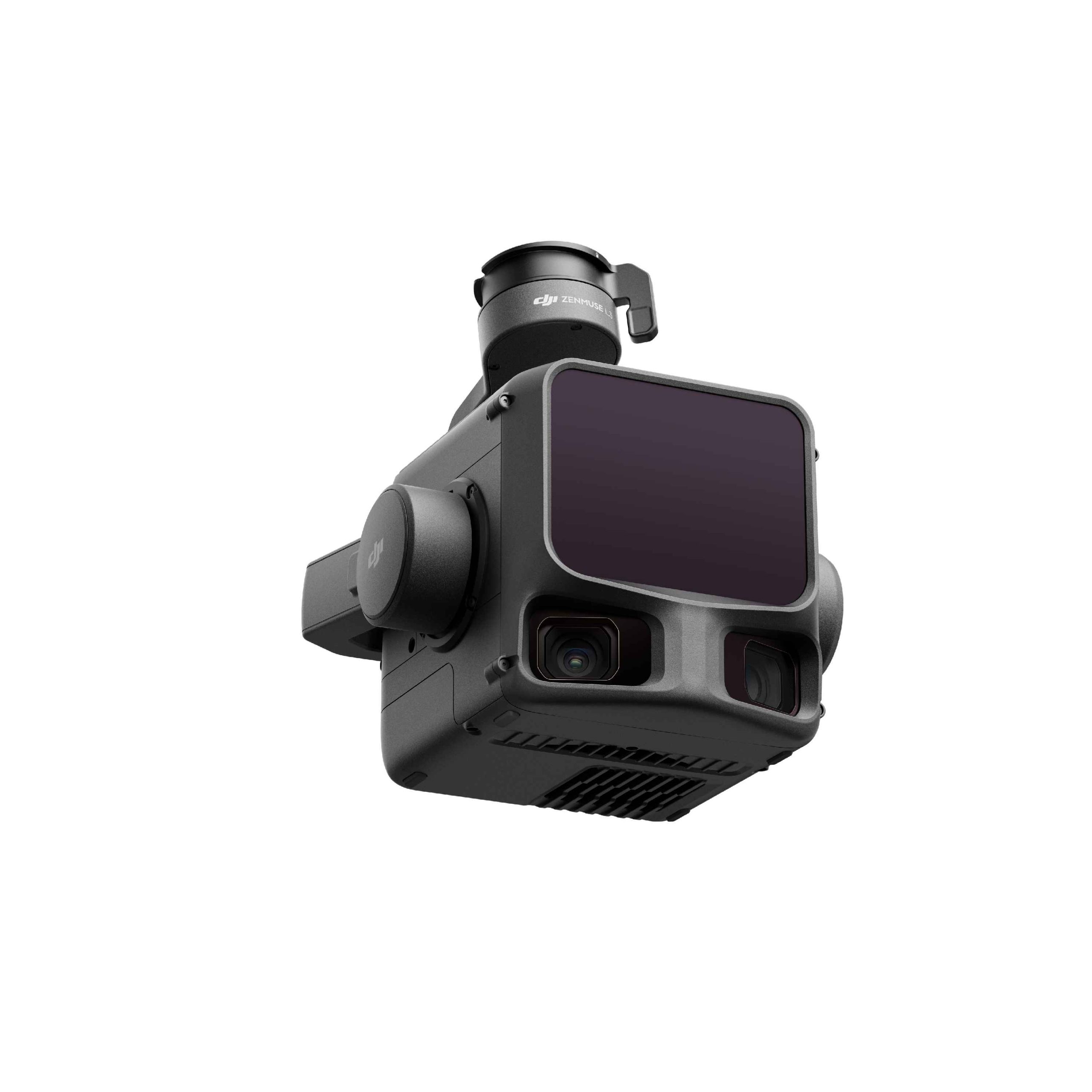

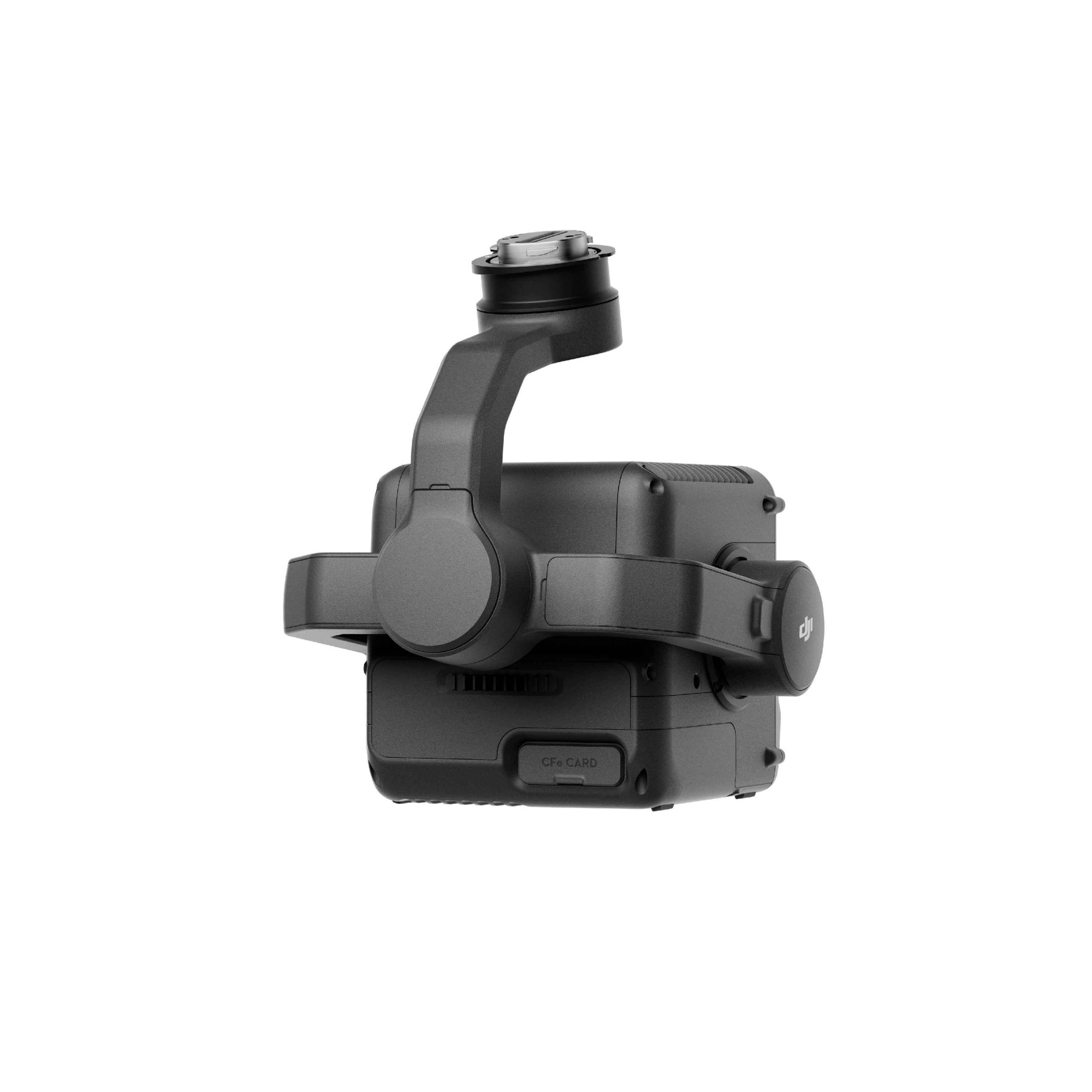

Zenmuse L3 integrates a 1535nm long-range LiDAR, dual 100MP RGB mapping cameras, a high-precision POS system, and a three-axis gimbal, all within a compact device, delivering unprecedented performance for its size.

1535nm Long-Range LiDAR

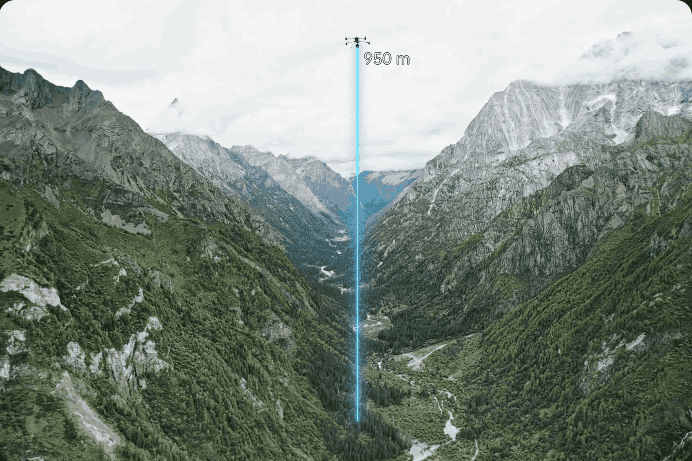

Long Range, Wide Coverage
Zenmuse L3 achieves a maximum detection range of 950 m at a pulse rate of 100 kHz, tested under 100 klx ambient light and on objects with 10% reflectivity. The adjustable pulse rate allows for flexible power output and optimal adaptation to different operational scenarios. Typical flight altitudes of 300 to 500 m significantly expand single-flight coverage and boost mapping efficiency.

Small Spot, High Energy
With a laser beam divergence of just 0.25 mrad (1/e²), the spot size at the same range is about one-fifth that of Zenmuse L2, enabling detection of smaller objects such as power lines and branches. Higher energy density results in stronger penetration capability, significantly increasing ground point density beneath vegetation and enabling high-accuracy reconstruction of complex terrains and structures.

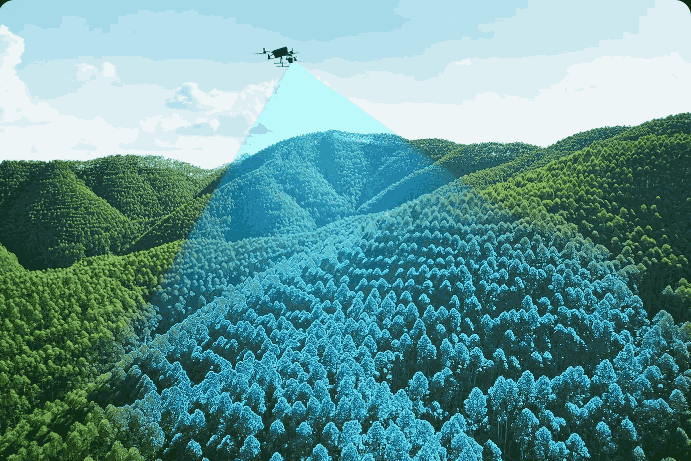

High Pulse Rate, Multiple Returns
With maximum laser pulse emission frequency of 2 million pulses per second and support for up to 16 returns, Zenmuse L3 delivers highly accurate spatial reconstruction. Point cloud density and penetration capability can be adjusted to fit needs from high-accuracy mapping to complex environments.

Scanning Modes
Supports Linear, Star-Shaped, and Non-Repetitive scanning modes for different operational scenarios:

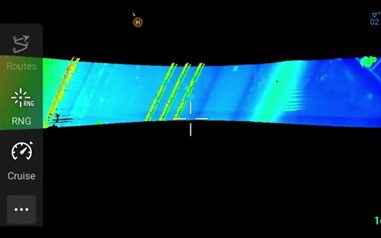

- Linear: Achieves more consistent point cloud distribution, ideal for high-accuracy terrain mapping.

- Star-Shaped: Balances accuracy with multiple scan angles and penetration capability, well-suited for forests or dense urban environments.

- Non-Repetitive: Provides multiple scan angles and broader coverage, optimized for power line inspections and other complex structural surveys.

Dual 100MP RGB Mapping Camera System
Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, Zenmuse L3 delivers significantly enhanced accuracy and efficiency. Pixel binning supports an effective 25MP resolution with larger pixel size, producing superior color reproduction even under poor lighting conditions.
107° Ultra-Wide FOV
The dual RGB mapping cameras provide a horizontal field of view (FOV) of up to 107°, allowing each capture to cover a broader area. Even with a 20% LiDAR side overlap ratio, you can capture data for both digital orthophoto maps (DOM) and digital elevation models (DEM) in a single flight, thereby greatly improving operational efficiency.
Accuracy Meets Efficiency
Zenmuse L3 delivers significant improvements in both point cloud and RGB accuracy, while raising efficiency to new heights. Paired with DJI Matrice 400, a single flight can cover up to 10 km², enabling up to 100 km² of high-accuracy mapping per day. Large-area, high-accuracy results are delivered in a seamless workflow.
High Accuracy
Proprietary High-Precision System
LiDAR Data Accuracy
Photogrammetric Accuracy
High Penetration
High Ground Point Density
High Efficiency
Up to 100 km per Day
When mounted on DjI Matrice 400, Zenmuse L3 delivers outstanding efficiency. At a flight altitude of 300 m, a single flight can cover up to 10 km², enabling up to 100 km of daily coverage.
Multiple Deliverables in a Single Flight
Simultaneously captures LiDAR and RGB data to generate a range of mapping products from a single flight, including
DEM, DOM, and more.

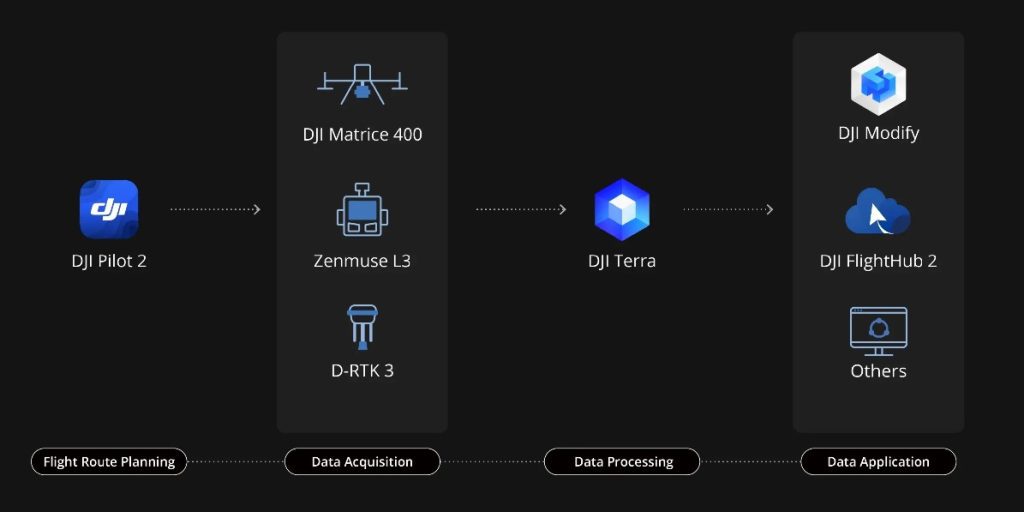

End-To-End Solution
Zenmuse L3 seamlessly integrates with DJI’s ecosystem to deliver an end-to-end mapping solution. From data acquisition and processing to application, this unified workflow is simpler to operate and easier to master than traditional multi-platform setups, helping users efficiently complete a wide range of mapping tasks.

Data Acquisition
Point Cloud Result Preview
DJI Pilot 2 automatically recommends flight parameters based on user-defined routes and generates a Density Profile
Chart and point cloud distribution charts before takeoff, enabling users to preview point cloud results.

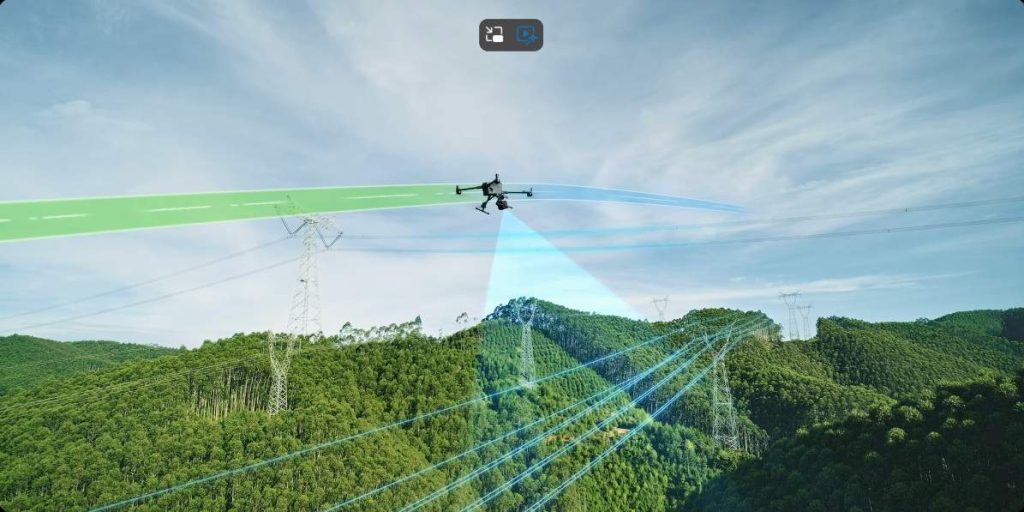

Power Line Follow
Zenmuse L3 significantly enhances Power Line Follow, supporting operations up to 130m altitude. Without bypassing obstacles or crossing lines, Zenmuse L3 enables complete electrical corridor data acquisition in a single straight flight in most scenarios.

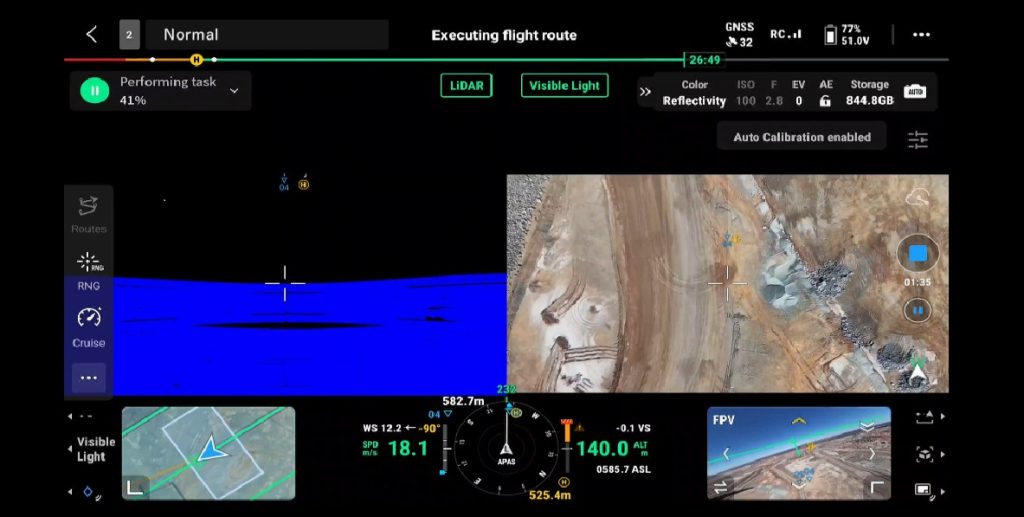

Flexible Split-Screen View
Dji Pilot 2 supports split-screen viewing of any two data sources— point cloud, RGB, or Vision Assist-allowing users to freely combine displays to suit their needs. During Power Line Follow or when the RGB cameras face downward, Vision Assist provides real-time forward-facing visuals, reducing flight risks and improving overall efficiency and safety.

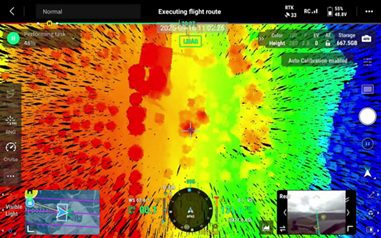

Real-Time Point Cloud
Supports real-time point cloud SLAM reconstruction with instant 2D and 3D point cloud previews during operations, allowing users to monitor progress and take measurements as data is being collected. Point cloud results can also sync instantly to the cloud via DjI FlightHub 2 for rapid emergency response and assessment.

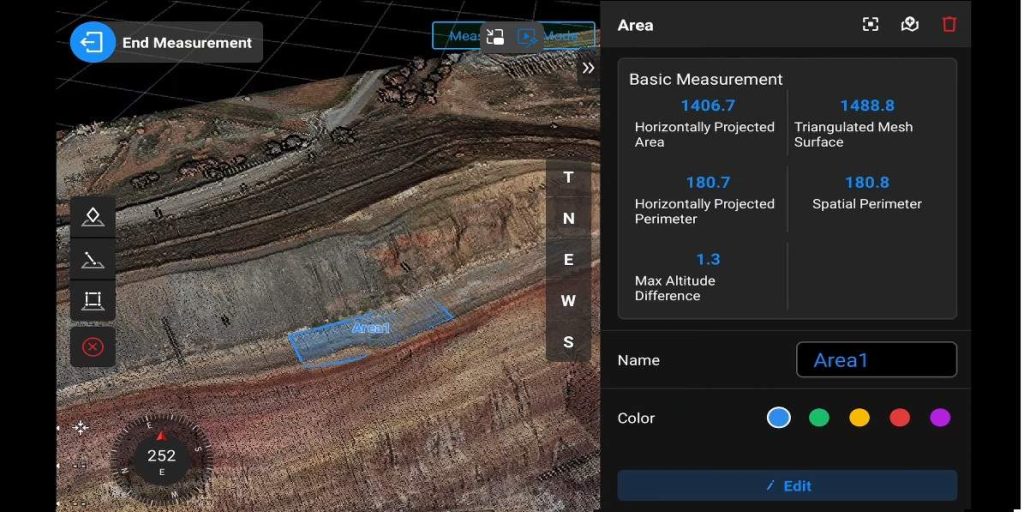

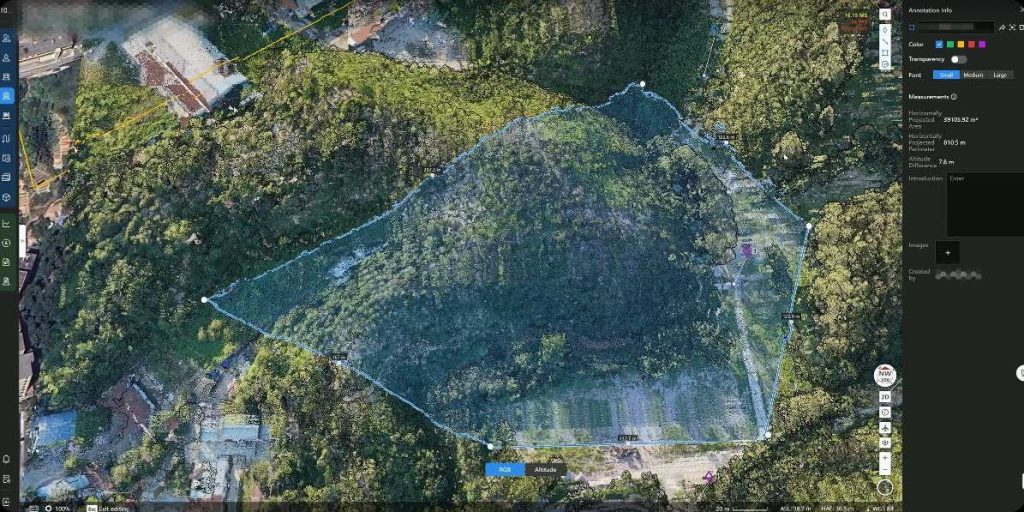

Cloud-Based Point Cloud Measurement
Zenmuse L3 point cloud outputs are fully compatible with DjI FlightHub 2. Users can view and manage point cloud data in real time, easily generate detailed flight routes, annotate and share points of interest, and perform advanced line and area measurements directly in the cloud.

Data Processing
PPK Data Processing
LiDAR Gaussian Splatting
Fusion-Based Modeling
Data Application
Smart Filter
DJI Modify supports intelligent semantic classification of point clouds, automatically distinguishing ground, vegetation, buildings, wires, electric towers, and more. After classification, users can efficiently adjust categories using Quick Selection and Structure Selection tools, further enhancing classification accuracy and processing efficiency.
Profile Tool
Comprehensive Output Capabilities
End-To-End Solution
Delivers a complete workflow covering data capture, processing, and application.

Data Security
Zenmuse L3 supports CFexpress™ memory card encryption, enabling secure protection of stored data and preventing unauthorized access or data theft. Matrice 400 offers one-click log clearing and AES-256 encryption for video transmission, further ensuring data confidentiality.
Data Security
Zenmuse L3 supports CFexpress™ memory card encryption, enabling secure protection of stored data and preventing unauthorized access or data theft. Matrice 400 offers one-click log clearing and AES-256 encryption for video transmission, further ensuring data confidentiality.
Application Scenarios
- Topographic Survey
- Earthwork
- Geological Disaster Investigation
- Engineering Survey
- Forestry Management
- Electricity
- Mining Survey
- Emergency Survey

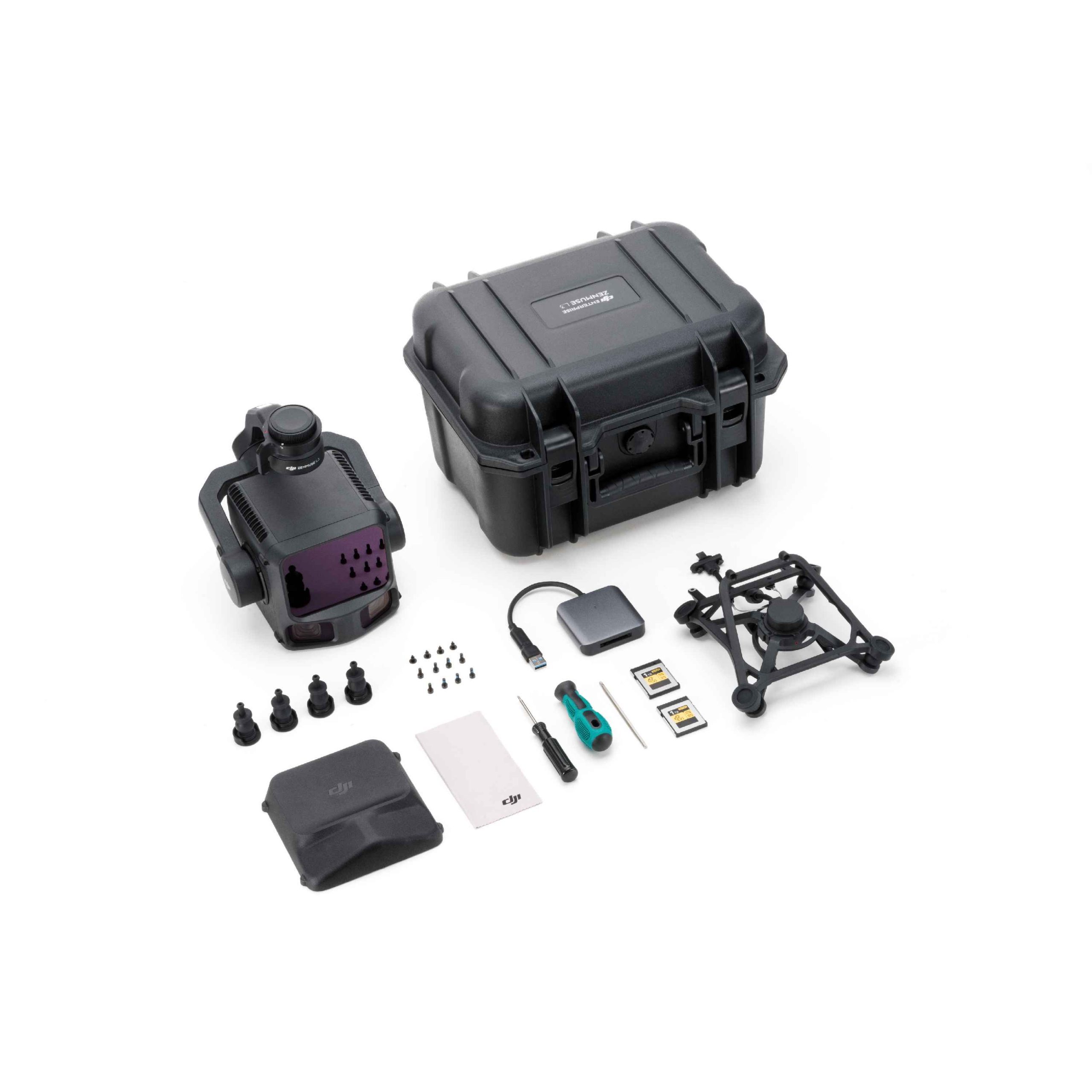

In the Box
- Zenmuse L3 x 1
- Zenmuse L3 – Single Port Gimbal x 1
- CF-express Type B memory card x 2
- CF-express Type B card reader x 1
- Screw tool set x 1
- Storage box x 1
- Lens cloth x 1
- M400 transport box inner liner x 1
