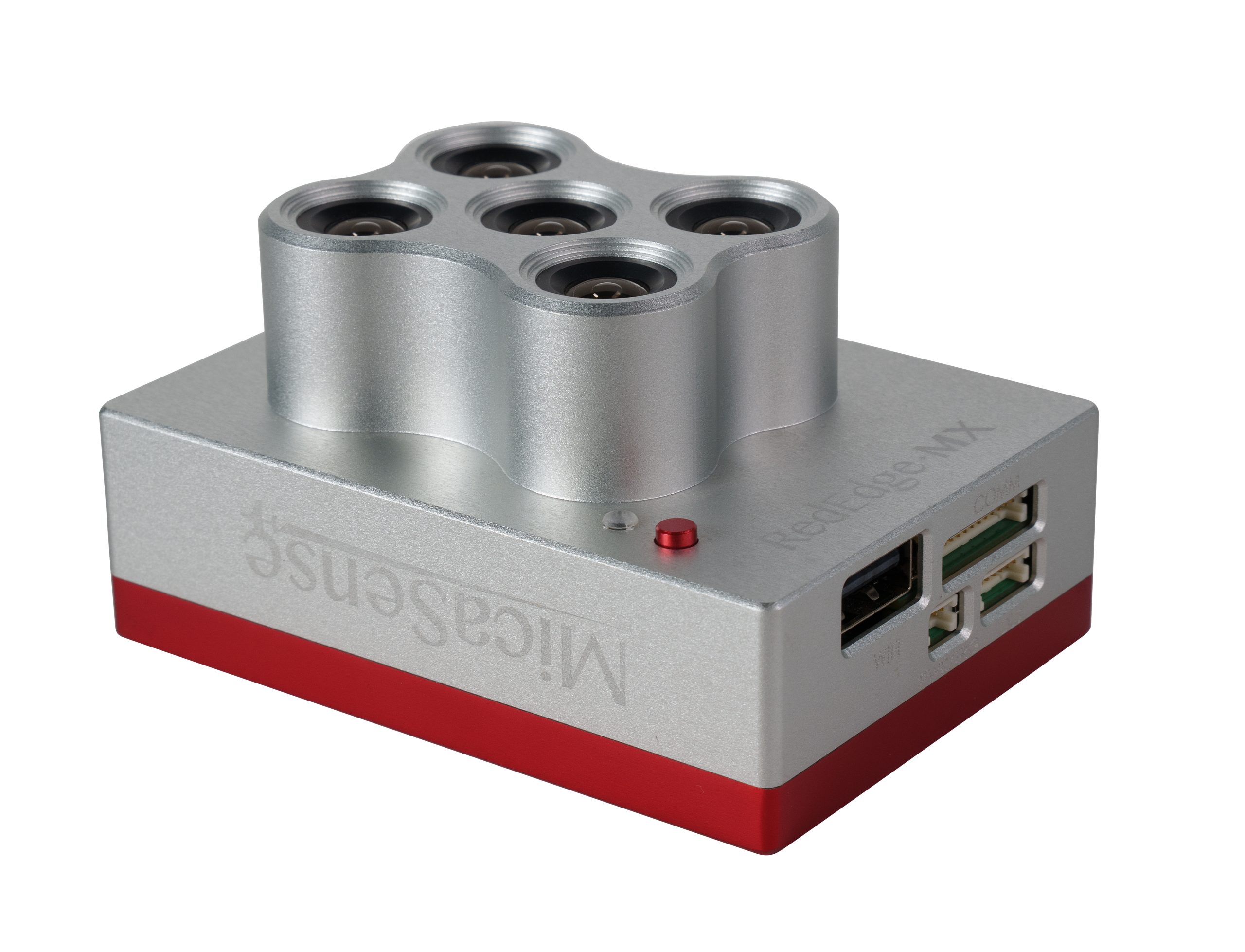

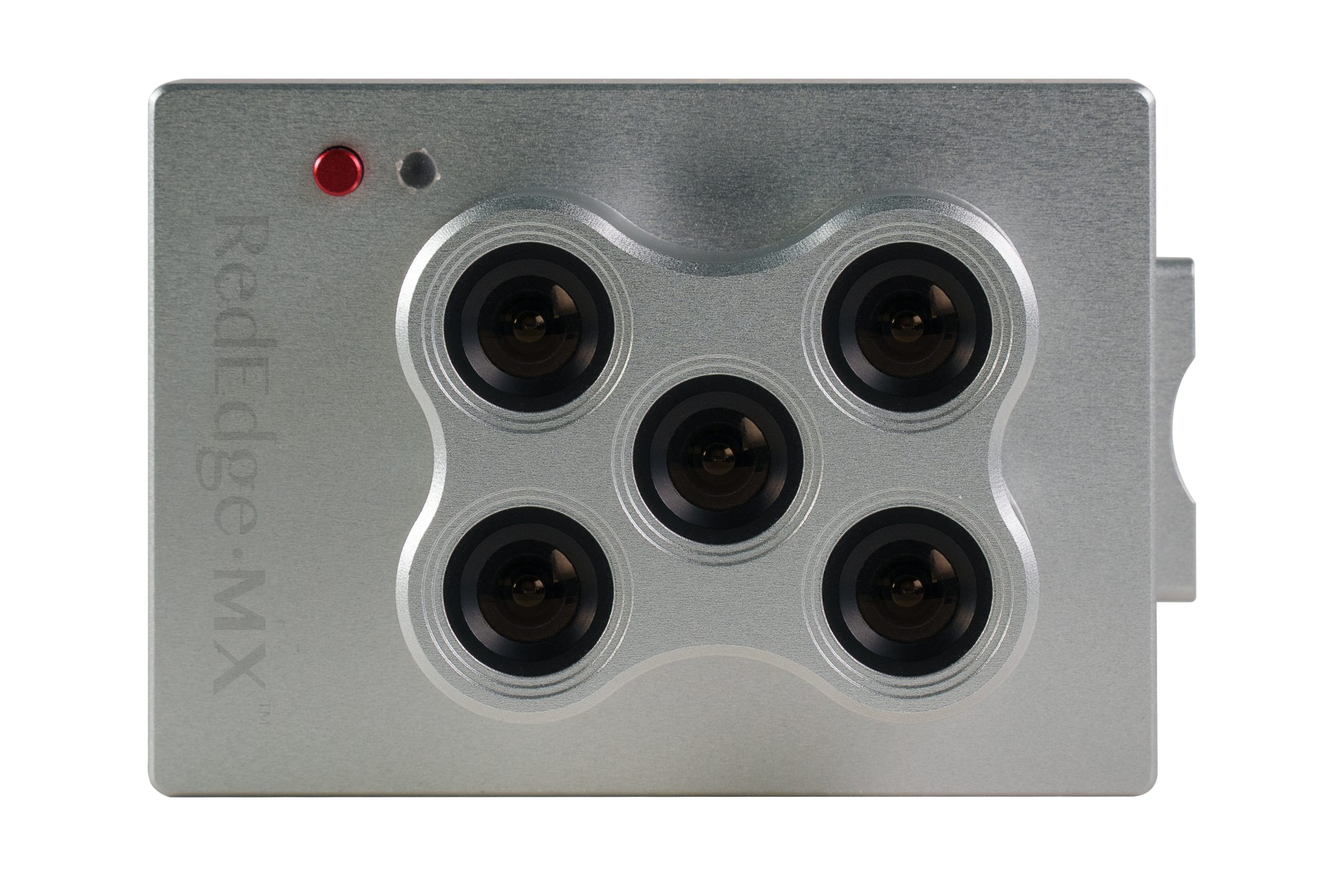

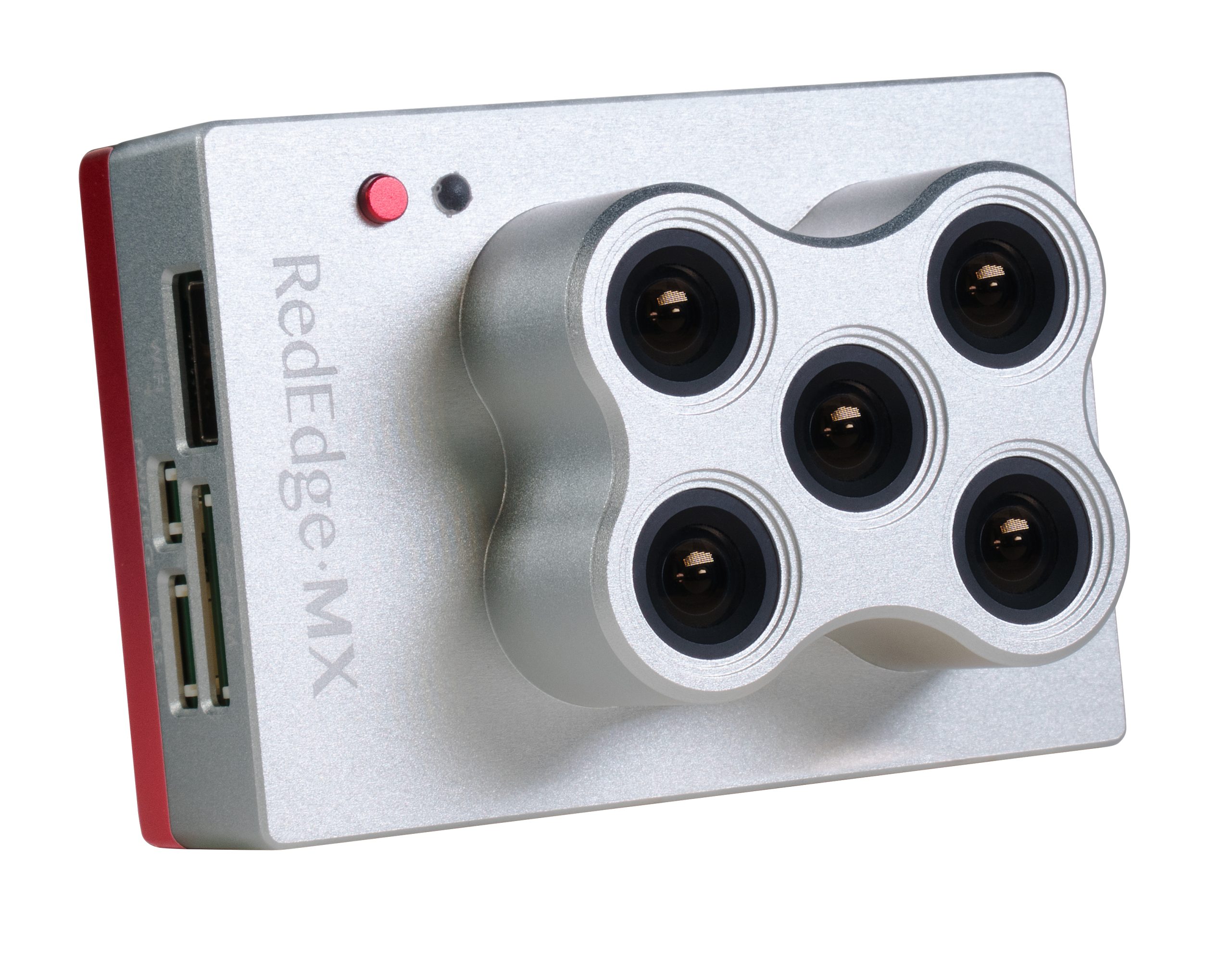

MicaSense RedEdge-MX Multispectral Kit
Agriculture, Industries, Partner PayloadsAED13,929.00 VAT Excl
Key Features:
- Five narrow multispectral bands captured
during flight. - Global shutter for distortion-free images.
- 1 capture per second, 12-bit RAW output for
post-processing flexibility. - Data outputs at 8 cm GSD per pixel (3.14 in)
per band at 120 m (400 ft) AGL. - Rugged design with no moving parts.
- Compatible with PIX4Dfields, Agisoft
Metashape, and OpenDroneMap.
-
Description
The RedEdge-MX is a rugged, professional multispectral sensor designed for field-scale precision agriculture and environmental monitoring.
The modular payload captures five spectral bands in a single flight, delivering reliable data for analysis and actionable insights.

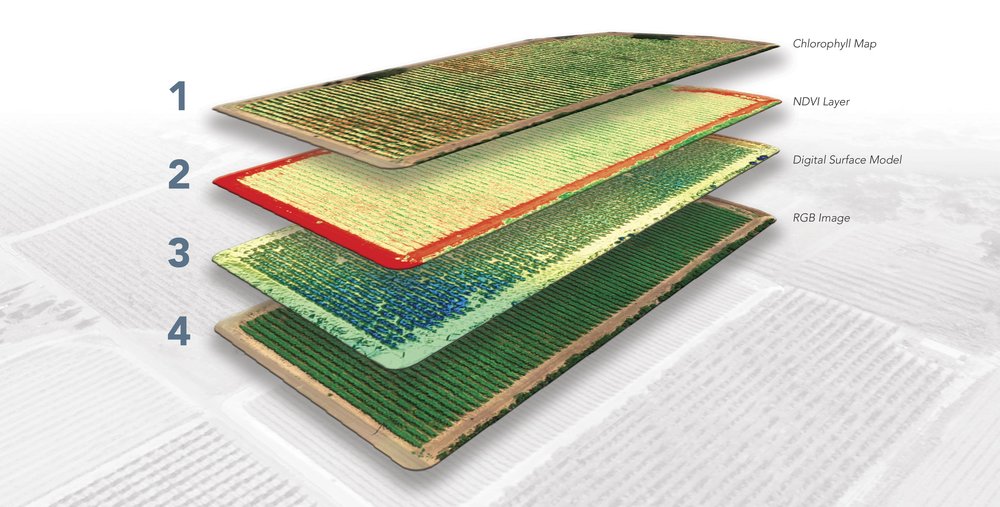

One flight is all it takes to generate RGB composites, NDVI, NDRE, GNDVI, AND and chlorophyll index maps across the full field extent.
Professional calibration for time series analysis
With the DLS2 light sensor and CRP2 calibrated reflectance panel, you can maintain data consistency across varying times, locations, and lighting conditions, supporting time-series studies and compliance with peer-reviewed publication standards.
Proven performance
Manufactured in the USA and validated through more than 10 years of field use, the RedEdge-MX is trusted by customers in over 70 countries.
Multispectral data capture, made simple

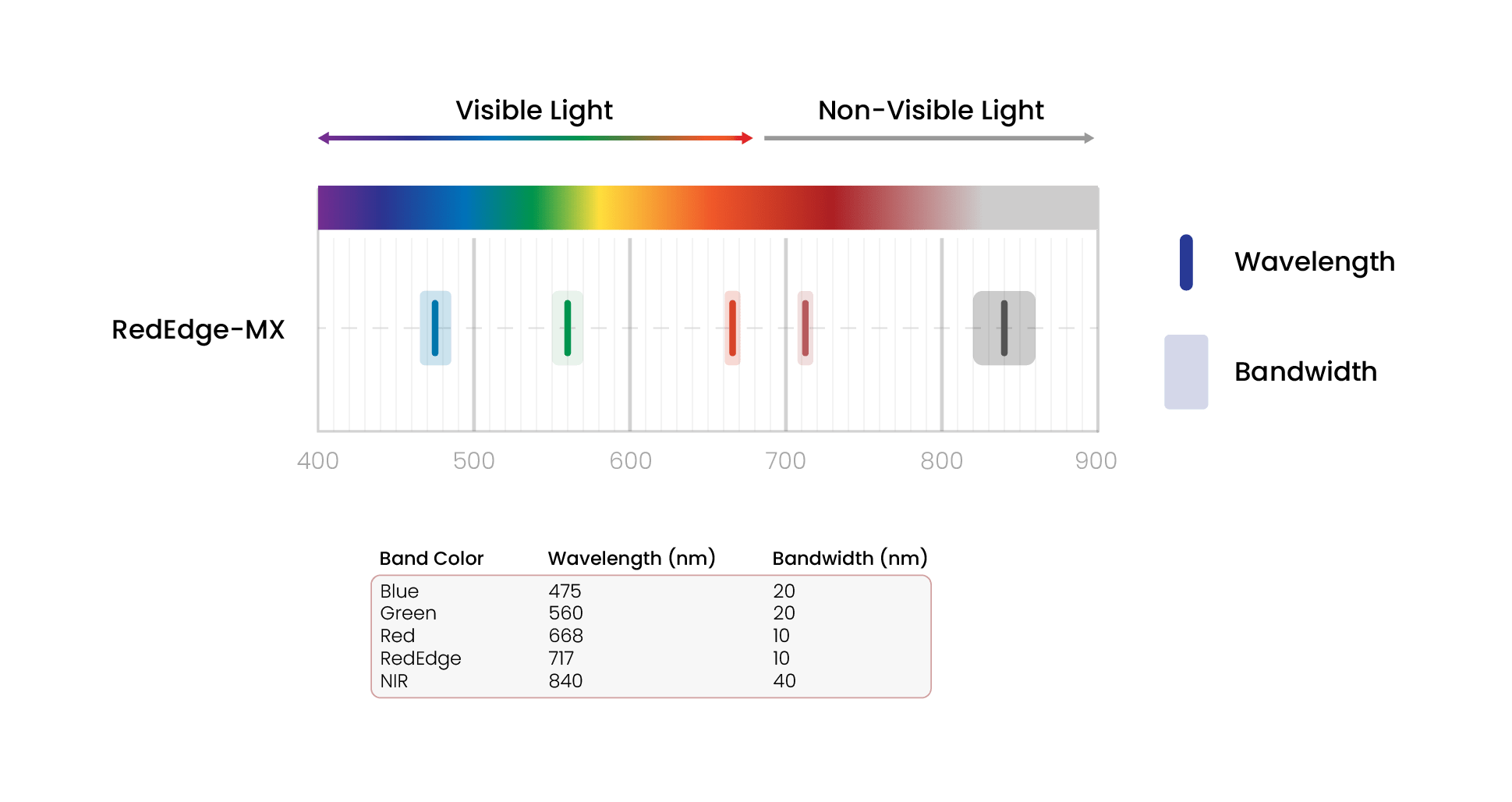

The RedEdge-MX captures reflected light across five discrete spectral bands (Blue, Green, Red, Red Edge, and Near-Infrared), including wavelengths beyond the visible spectrum. By analyzing how crops reflect this light, it provides field-level insights into crop health and vigor.
Specifications
| Weight | 231.9 g (8.18 oz) RedEdge-MX (includes DLS2 and cables) |
| Dimensions | 8.7 cm x 5.9 cm x 4.54 cm (3.4 in x 2.3 in x 1.8 in) |
| External Power | 4.2 V - 15.8 V 4.0/8.0W (nominal, peak) |
| Spectral Bands | Blue (475 nm center, 20 nm bandwidth), Green (560 nm center, 20 nm bandwidth), Red (668 nm center, 10 nm bandwidth), RedEdge (717 nm center, 10 nm bandwidth), Near-IR (840 nm center, 40 nm bandwidth) |
| RGB Output | Global shutter, aligned with all bands |
| Ground Sampling Distance | 8 cm (3.14 in) per pixel (per band) at 120 m (~400 ft) AGL |
| Capture Rate | 1 per second (all bands), 12-bit RAW |
| Field of View | 47.2° HFOV (multispectral) |
| Storage | SD Card |
