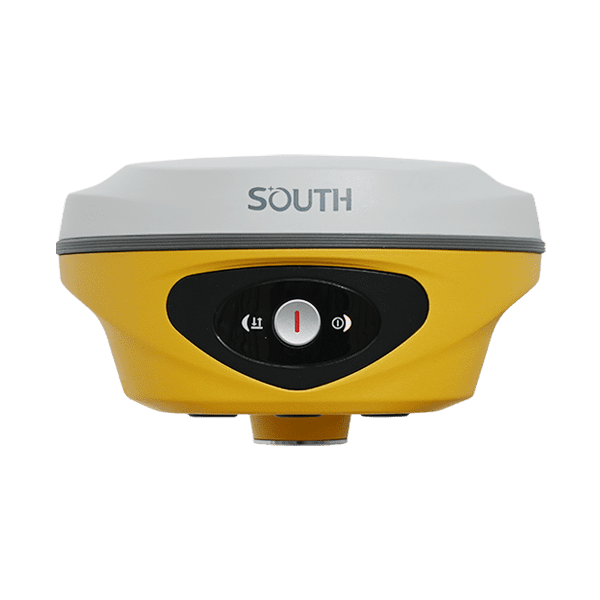

South ALPS 2
Laser RTK
REACH NEW HEIGH
LASER MEASUREMENT & REMOTE STAKEOUT

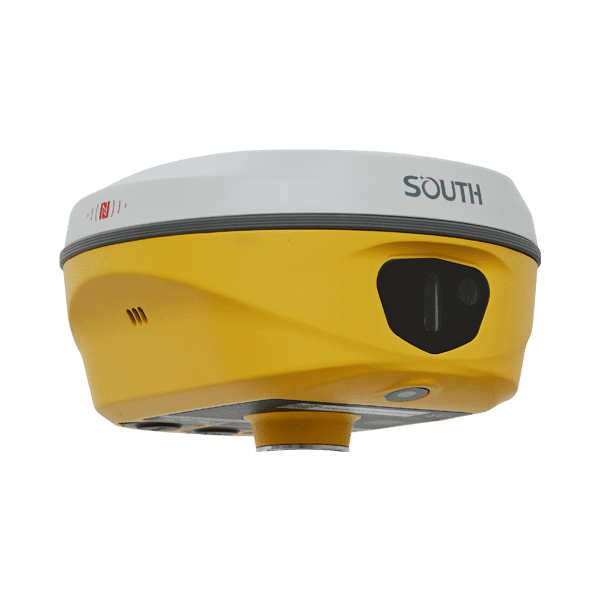

LIVE-VIEW AR STAKEOUT WITH DUAL CAMERA
- Farlink 2.0 Radio: 8-12 km Event Further!
- 3R Green Laser: Laser Measurement & Stakeout
- 8MP Camera: Live-view AR Stakeout
- 2MP Camera: CAD AR Stakeout
- 5 Gen. IMU: Time usable!
-
Description
Laser Measurement
— Four Advantages to Add Your Productivity
Measure More & Farther, in shorter time
With laser measurement, ALPS2 has a broader working range and fewer blind spots, enabling remote measurements in areas with poor GNSS signal quality. Previously challenging spots, like spaces under rooftops and areas with obstacles, are now easily measurable.
Measure at Day or Night, by Your Need
Laser measurement allows surveyors to collect target point at a dark environment such as night or semi-indoor environment. It also can measure distance indoor.
Measure the Unreachable, break the limit
Laser measurement allows surveyors to collect target point at a position that traditional RTK can not reach directly, such as point on the surface of a wall, a tree, or sill of window, and the small space that surveyors can not step in.
Keep You Away from Dangers, Safe than Ever
Laser Measurement help users mitigate risks when surveying near hazardous areas, such as busy roads and sea or lakes, ensuring surveyors’ safety. A secure working approach is not only a personal requirement but also essential for the well-being of your family.
Specification
| GNSS Features | Channels | 1698 |
| GPS | L1C, L1C/A, L2C, L2P(Y), L5 | |
| GLONASS | G1, G2, G3 | |
| BDS | B1I, B2I, B3I, B1C, B2a, B2b | |
| GALILEOS | E1, E5a, E5b, E6, AltBOC* | |
| SBAS | L1* | |
| IRNSS | L5* | |
| QZSS | L1, L2C, L5* | |
| MSS L-Band | Reserve | |
| Positioning Output Rate | 1Hz~20Hz | |
| Initialization Time | < 10s | |
| Initialization Reliability | > 99.99% | |
| Positioning Precision | Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS |
| Vertical: 0.50 m + 1 ppm RMS | ||
| GNSS Static | Horizontal: 2.5 mm + 0.5 ppm RMS | |
| Vertical: 3.5 mm + 0.5 ppm RMS | ||
| Static (Long Observation) | Horizontal: 2.5 mm + 0.1 ppm RMS | |
| Vertical: 3 mm + 0.4 ppm RMS | ||
| Rapid Static | Horizontal: 2.5 mm + 0.5 ppm RMS | |
| Vertical: 5 mm + 0.5 ppm RMS | ||
| PPK | Horizontal: 3 mm + 1 ppm RMS | |
| Vertical: 5 mm + 1 ppm RMS | ||
| RTK(UHF) | Horizontal: 8 mm + 1 ppm RMS | |
| Vertical: 15 mm + 1 ppm RMS | ||
| RTK(NTRIP) | Horizontal: 8 mm + 0.5 ppm RMS | |
| Vertical: 15 mm + 0.5 ppm RMS | ||
| SBAS Positioning | Typically<5m 3DRMS | |
| RTK Initialization Time | 2~8s | |
| IMU Accuracy | 8mm+0.7 mm/°tilt | |
| IMU Tilt Angle | Optimal accuracy within 60° | |
| Hardware Performance | Dimension | 134mm(φ)×79mm(H) |
| Weight | 860g (battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating Temperature | -45℃~+75℃ | |
| Storage Temperature | -55℃~+85℃ | |
| Humidity | 100% Non-condensing | |
| Waterproof/Dustproof | IP68 standard | |
| Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally | |
| Power Supply | 6-28V DC, overvoltage protection | |
| Battery | Inbuilt 7.4v 6800mAh rechargeable Lithiumion | |
| battery | ||
| Battery Life*1 | 25h (static) | |
| 20h (rover mode, optimal condition) | ||

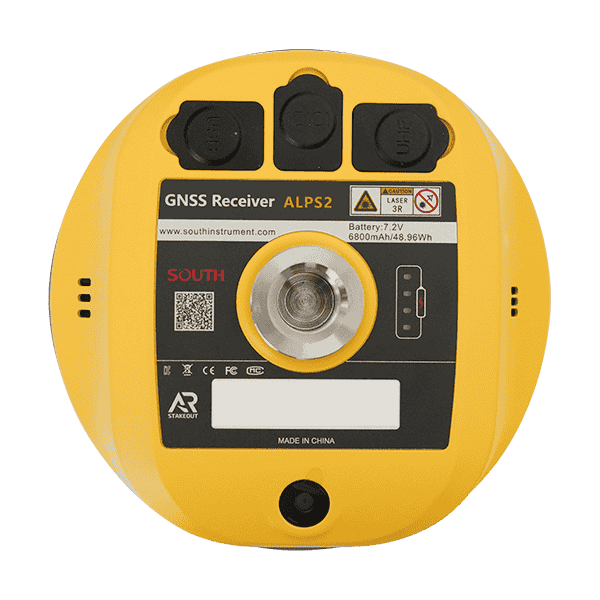

| Communications | I/O Port | 5-PIN LEMO interface (external power port + RS232) |
| Type-C interface (charge+OTG+Ethernet) | ||
| UHF antenna interface | ||
| Internal UHF | 2W Radio Tx&Rx | |
| Frequency Range | 410-470MHz | |
| Communication Protocol | Farlink, Trimtalk, SOUTH | |
| Communication Range | Typically 8-10km with Farlink protocol, (12-15km in optimal condition) | |
| Bluetooth | Bluetooth 5.0, Bluetooth 3.0/4.2 standard, Bluetooth 2.1 + EDR | |
| NFC Communication | Support | |
| Modem | 802.11 b/g/n standard | |
| Data Storage/Transmission | Storage | 16GB SSD internal storage |
| Support automatic cycling storage | ||
| Support external USB storage (OTG) | ||
| The customizable sample interval is up to 20Hz | ||
| Data Transmission | Plug and play mode of USB data transmission | |
| Supports FTP/HTTP data download | ||
| Data Format | Static data format: STH, Rinex2.01, Rinex3.02, etc. | |
| Differential data format: RTCM 2.1, RTCM | ||
| 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 | ||
| GPS output data format: NMEA 0183, PJK | ||
| plane coordinate, Binary code | ||
| Support: VRS, FKP, MAC, fully support | ||
| NTRIP protocol | ||
| Sensors | IMU | Built-in IMU, calibration-free, 60 Degreest |
| Camera | Front Camera: 8MP, Bottom Camera: 2MP, (Live View AR stakeout) | |
| Laser | 3R green laser, 30m working range | |
| Electronic Bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time | |
| Thermometer | Built-in thermometer sensor, intelligent temperature control technology, monitoring and adjusting the receiver temperature | |
| User Interaction | Operating System | Linux |
| Buttons | Single button | |
| Indicators | Data and power indicators | |
| Web Interaction | With access to Web UI via WiFi or USB connection, users can monitor the receiver status and change the configurations | |
| Voice Guidance | Chinese/English/Korean/Spanish/Arabic/Portuguese/Russian/Turkish/French/Italian | |
| Secondary Development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
| Cloud Service | The powerful cloud platform provides online services like remote management, firmware updates, online registers, etc. |
*Reserve for future upgrade. Remarks: Measurement accuracy and operation range might vary due to atmospheric conditions, signal multipath, obstructions, observation time, temperature, signal geometry and number of tracked satellites. Specifications subject to change without prior notice.
*1.Actual battery life can vary depending on usage patterns and other factors. The listed parameter was obtained under controlled testing conditions.
