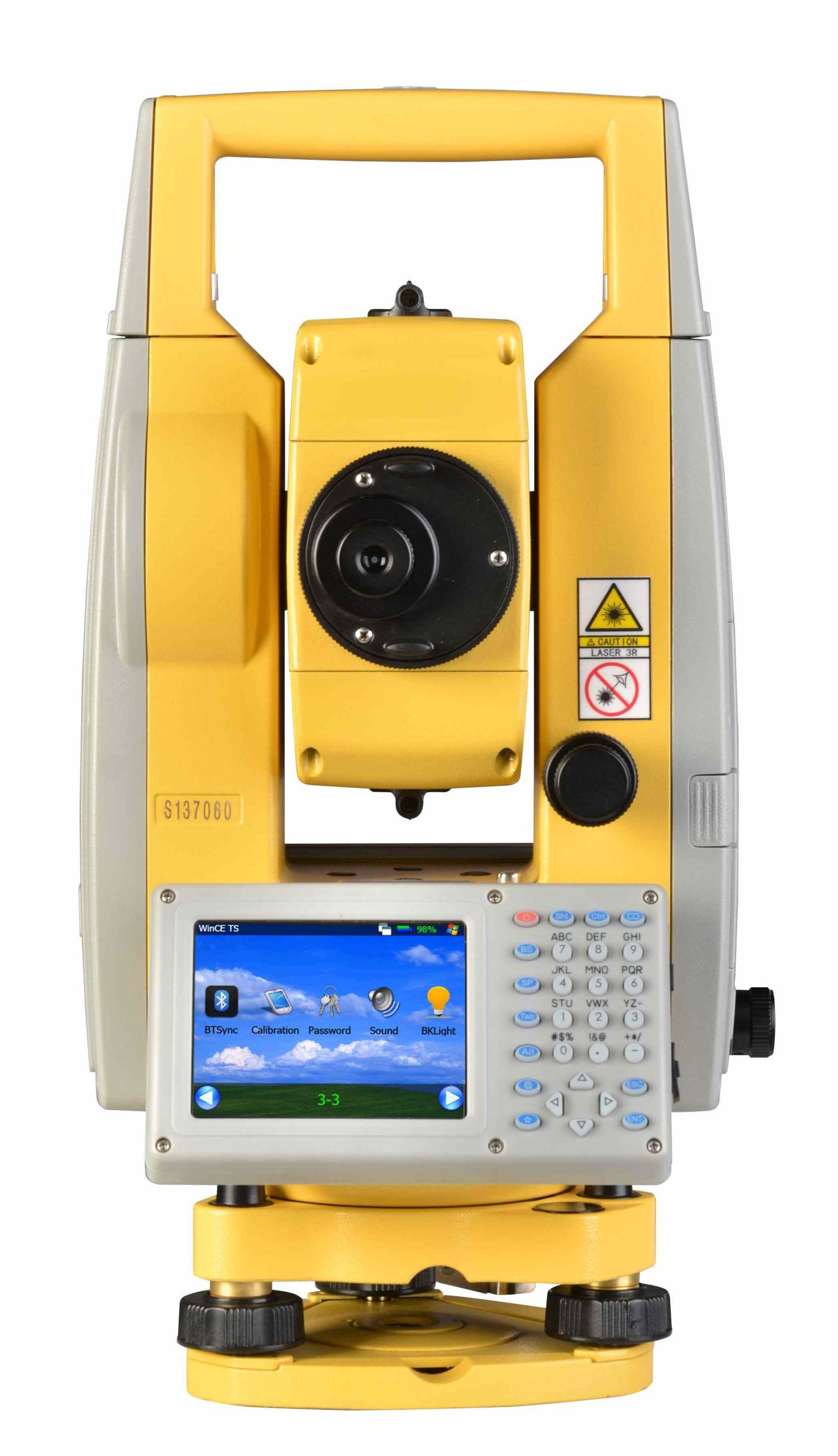

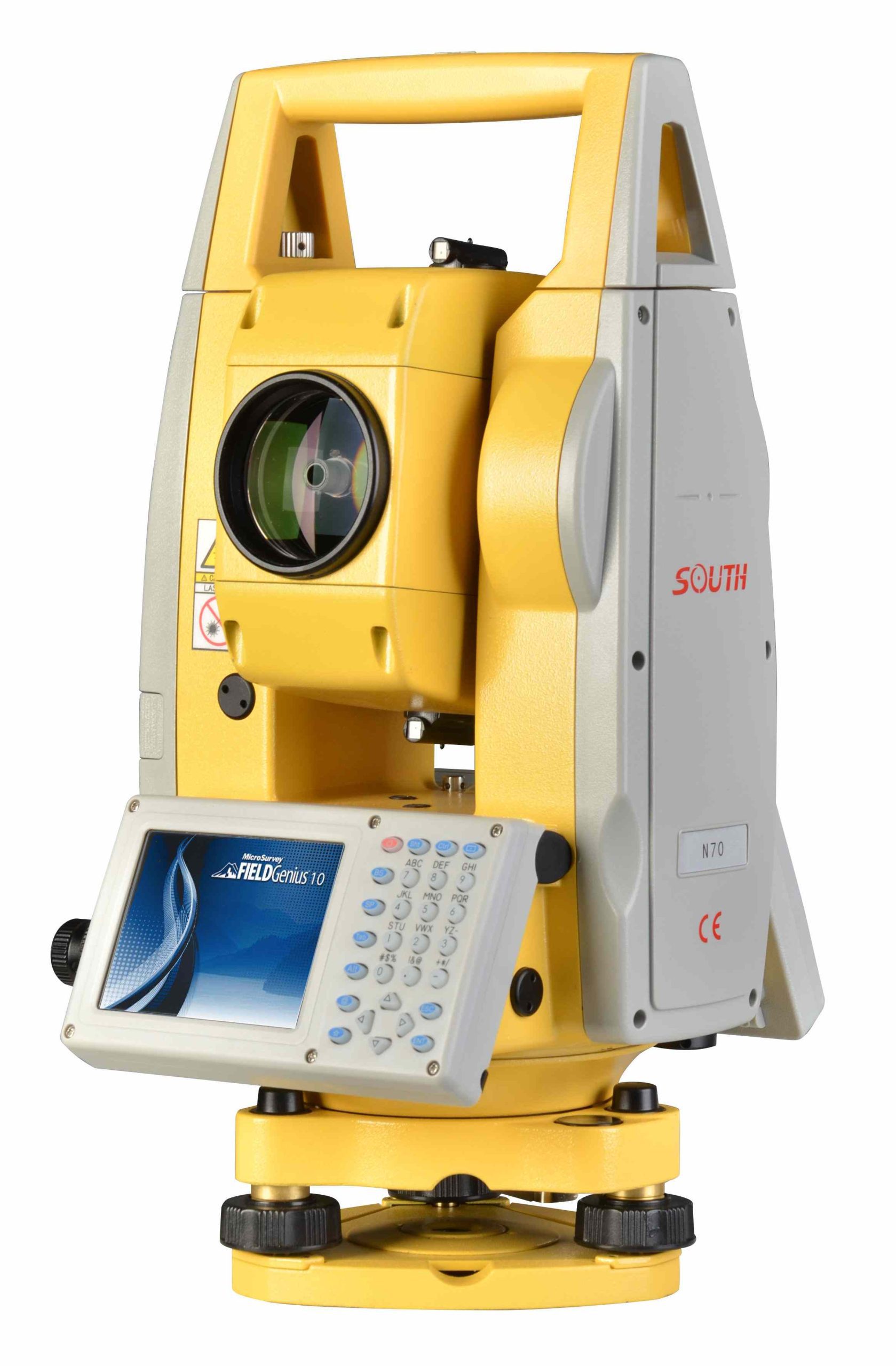

South N70 (2″)

1. Angle measurement accuracy improve

• Vertical angle: integrated unitary axis, less components. Less offset tolerance.
• Angle reading: 4 detector technology, reduce disk offset angle and rit tolerance.

2. Distance measurement accuracy improve

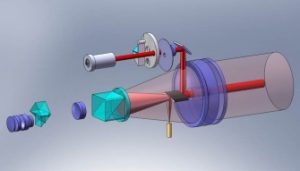

• Optical path change: totally new 5 axis design, fully isolation emitting and reflect signal. Reduce optical Crosstalk.
• Circuit design change: 150MHZ ultra high measure frequency, improve measure tape accuracy, Development by self. Improve SNR (Signal noise rate)

3. Geometry accuracy improve

• Clear telescope and high accuracy tribrach system, make sure pointing accuracy.

4. Compensator accuracy improve

• Micro survey tile tolerance by CCD image to compensate.

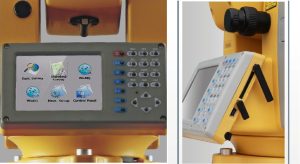

5. UE (User experience) improvement

• 640*480 high resolution.3.5 inch display unit. Easy to read under sunshine.
• WIN CE 6.0 OS, blue tooth standard, WIFI, Bluetooth standard.
• Ultra measure speed. Fine0.3S, track 0.1s.
• A variety of data transfer options for diverse needs, eg. SD card, mini USB interface.

Specification

① EN60825-1: 2007
② Good conditions: No haze, visibility about 40km. Overcast, no scintillation.
③ Good conditions. With Koada gray card white side (90%) reflective. sheet size 60*60mm. 400m under good conditions with koada gray card grey side (18%).
④ With Kodak gray card white side (90%) reflective. Reflectorless range /accuracy may vary according to measuring objects, observation situations and environmental conditions.
⑤ Range less than 200m. When 200m to 500m, 5+2ppm and measurement time maximum less than 10 second.
⑥ Typical, under good conditions. Range less than 500m. It also depend on object surface. Maximum less than 10s.

Standard Packing List

Main unit x 1
Lens cover x 1
Battery holder x 1
Battery LB-01 x 2
Tools pouch x 1
Plummet x 1
SD card x 1
Y type cable x 1
Manual x 1
Warranty card x 1
Charger LC-01 x 1
Reflective sheet x 1
Carry case x 1
Belt x 2
Mini USB cable x 1
