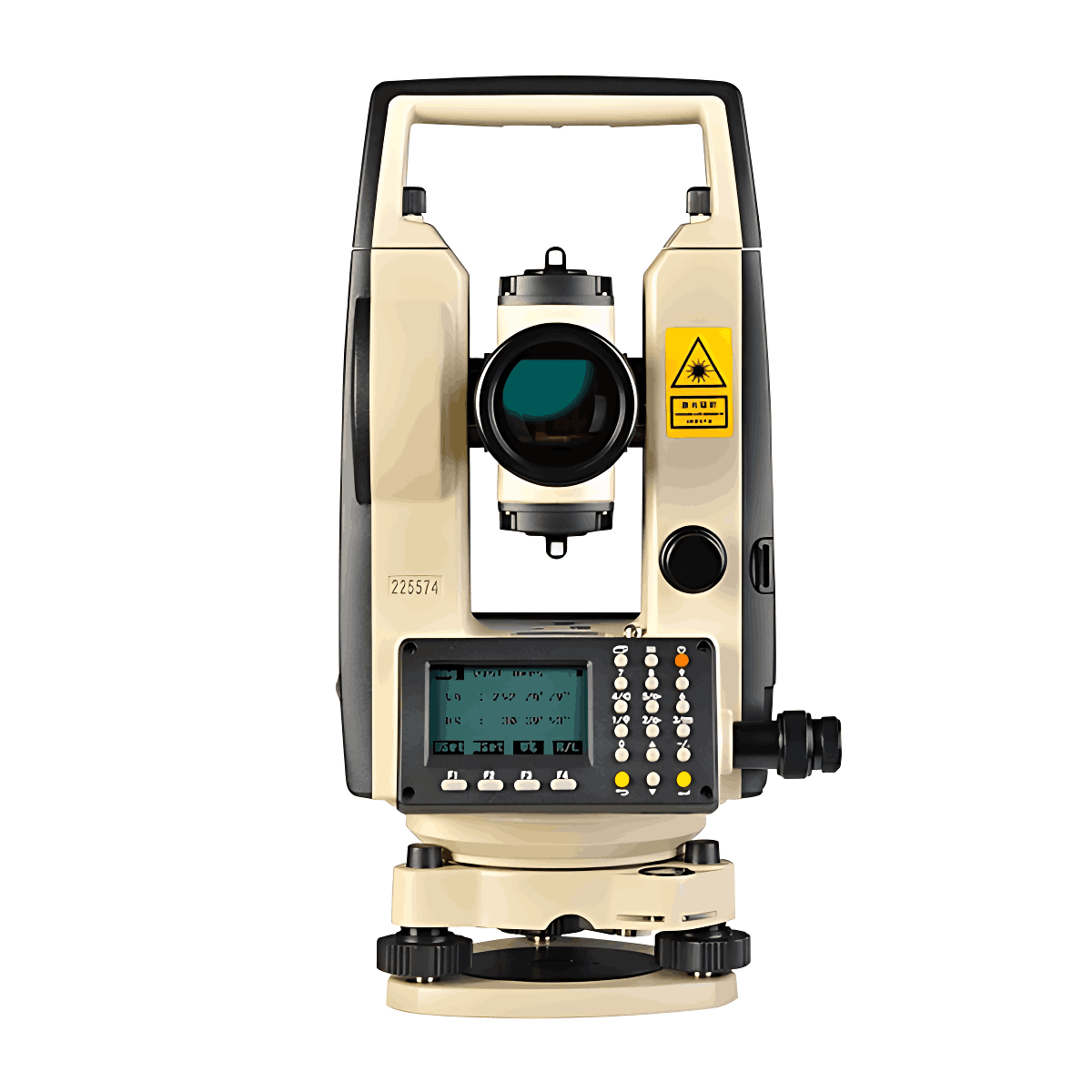

South NT-023 Theodolite
- Disruptive Innovation in Theodolite 300m Distance Measurement
- Supportable for Long-term Working
- Standard Laser Pointer
- Numeric Keypad
- 6 Inches LCD Screen with Illumination
- Angle, Distance and Axes Onboard Program
Contact us for more information
- Description
Redefined the Theodolite
300m distance measurement with Prism
Redefined the Theodolite by it’s small size but strong performance
2.6 inches LCD Screen with high-capacity battery
Afford a better solution for outside surveying project

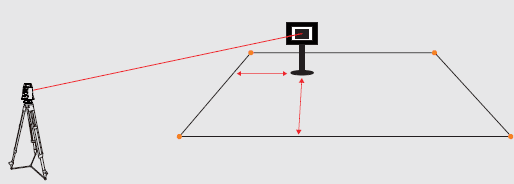

Axes Stake Out
The building axes is the basis of constructions. You can choose the relative axes to stake out based on the points’ position when doing the project. With this powerful Axes Stake Out function, NT-023 will help you find the stake out point precisely in an easier method.
Two Methods to Stake Out the Axes
A: Occupied Pt P: Occupied Pt
B: Target Pt A/B: The end of axes
Set NT-023 on one end of the axes Set NT-023 on an arbitrary point

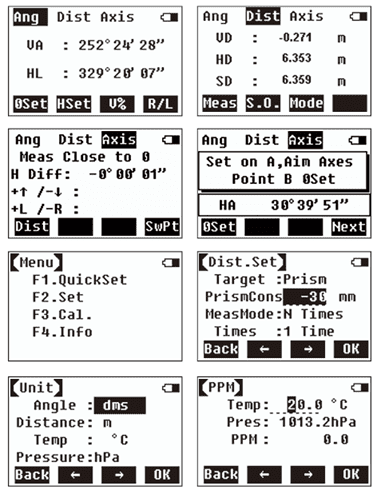

Disruptive Innovations
Specification
| Distance Measurement (Single Prism) | Max. Range | 300m |
| Accuracy | ±(3mm＋2ppm*D) | |
| Measure Time | Continuous: 0.35s, Single 1.5s | |
| Atmosphere Correction | Auto correction by input parameter | |
| Prism Constant | Auto correction by input parameter | |
| Telescope | Image | Erect |
| Magnification | 26.5x | |
| Effective Aperture | 152mm | |
| Resolving Power | 3″ | |
| Field of view | 1°30′ | |
| Minimum Focus Range | 1.5m | |
| Multiple Constant | 100 | |
| Additive Constant | 0 | |
| Stadia Accuracy | ≤0.40%/L | |
| Tube Length | 155mm | |
| Angle Measurement | Measuring Method | Absolute Encoding |
| Dia. of Encoder Disk | 79mm | |
| Minimum Reading | 1″ | |
| Accuracy | 2″ | |
| Detection Method | Horizontal: Dual, Vertical: Dual | |
| Compensator | Type | Single Axis |
| Working Range | ±3′ | |
| Accuracy | ±3″ | |
| Laser Plummet | Accuracy | ±1.5mm(@1.5m) |
| Spot Diameter | ±2.5mm(@1.5m) | |
| Wave Length | 635±20mm | |
| Display Unit | Type | 2.6 Inch,160*96 LCD Screen |
| Power Supply | Battery | 7.4V Lithium Rechargeable Battery |
| Environment | Working Range | ﹣20℃ ～﹢50℃ |
| Dimension | Size | 165 × 160 × 340 (mm) |
| Weight | 4.7kg |
Note: all information above is subject to change without any prior notice.
