Choosing the right drone is only half the battle — selecting the right payload can make or break your mission. For surveyors and public safety teams, the sensor you choose directly impacts data quality, operational speed, and on-the-ground decision-making.
The DJI Matrice 400 is more than an enterprise drone. It is a versatile platform built to handle a wide range of missions. With its high payload capacity, dual gimbal support and extended flight time, the M400 gives surveyors, inspectors and public safety teams the freedom to choose the right tools for the job.

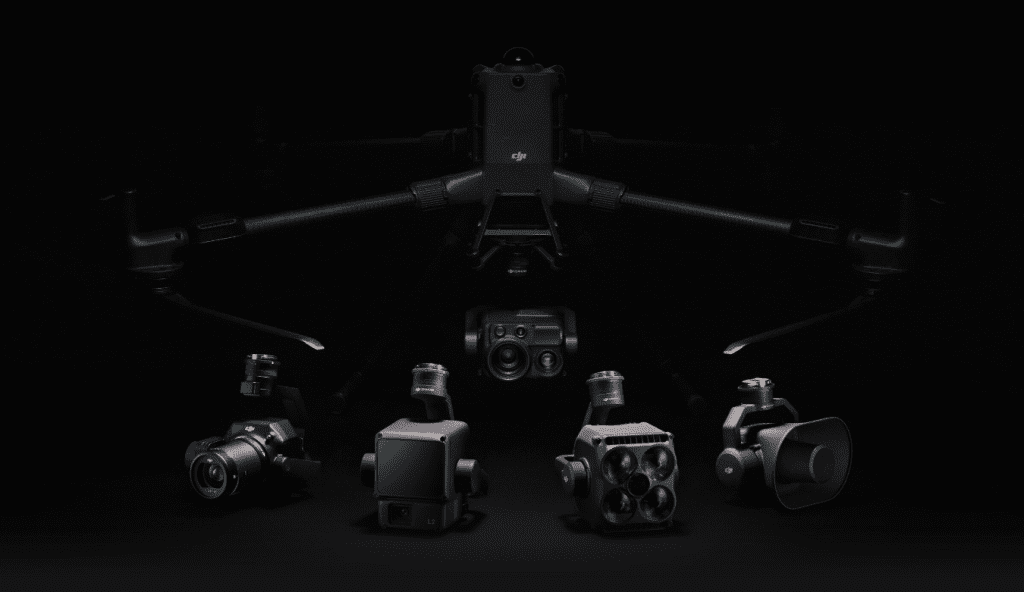

With so many sensors, cameras and accessories available, deciding which payload to mount can feel overwhelming. The right choice can mean sharper data, faster workflows and safer operations. This guide explains the key payload options for the M400, highlights their strengths for different mission types and shows how to get the most out of your aircraft in both surveying and emergency response scenarios.
Understanding the Matrice 400 Payload Capacity
The DJI Matrice 400 was built with heavy-duty missions in mind. It supports a maximum payload of up to 6 kilograms on the third gimbal connector, allowing professionals to carry large sensors or multiple tools in one flight. Its 59-minute maximum flight time (with optimal conditions) means surveyors and public safety teams can cover more ground and collect more data without frequent battery swaps.
The M400 also supports dual gimbal configurations, which lets you run two payloads at the same time. For example, surveyors can pair a LiDAR unit with an RGB camera to capture high-density point clouds and high-resolution images in one pass. Public safety teams can combine a thermal camera with a spotlight or speaker for more effective search, rescue and crowd management operations.
This level of flexibility makes the M400 a strong investment for professionals who need to adapt to different mission requirements without changing platforms.
Key Considerations When Choosing a Payload
Start by matching the payload to your mission. Mapping and surveying typically need high-accuracy LiDAR or photogrammetry sensors, while public safety or inspection work benefits from thermal imaging and strong zoom. Consider how precise your data must be, the conditions you will fly in, and whether the data integrates smoothly with your processing software. By weighing these factors first, you can equip the M400 with a payload that delivers the most useful results for every operation.
Recommended Payloads for Surveying and Mapping
The Matrice 400 is designed to handle professional-grade sensors, making it ideal for demanding mapping and surveying projects. Choosing the right payload ensures you get the most accurate and efficient results.
- Zenmuse L2 LiDAR Sensor
Perfect for high-density point clouds and topographic mapping. It captures detailed elevation data even through vegetation, making it ideal for forestry, mining and infrastructure planning. - Zenmuse P1 Photogrammetry Camera

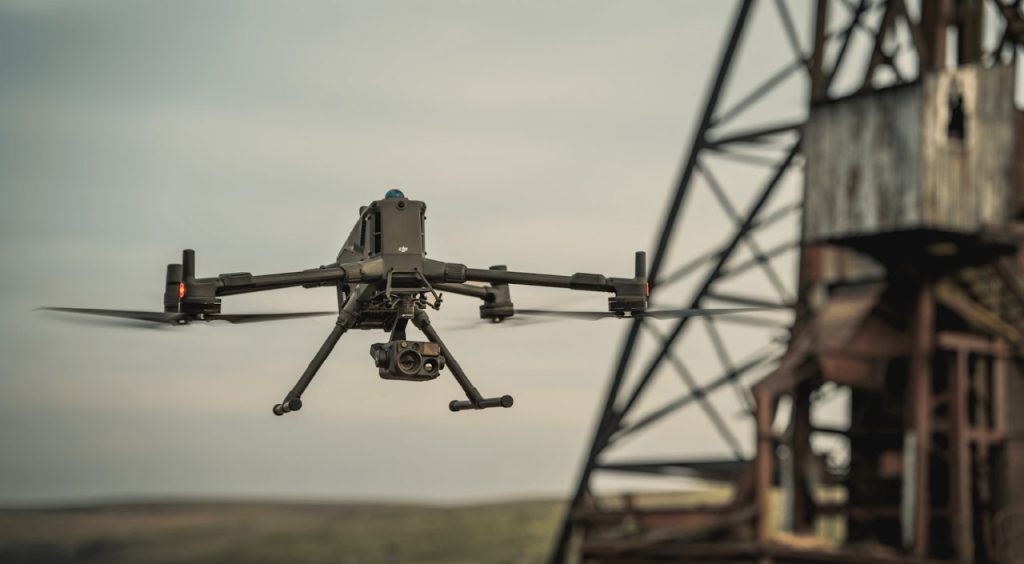

A full-frame camera optimized for large-area surveys. It delivers high-resolution images for photogrammetry workflows and works seamlessly with DJI Terra for rapid processing. - Combining LiDAR and Photogrammetry
When mounted together using the M400’s dual gimbals, the L2 and P1 can collect complementary datasets in one flight. This reduces field time and improves the accuracy of 3D models.
Other payloads, such as third-party LiDAR units compatible with DJI’s ecosystem, can also be used to meet very specific project needs. The M400’s payload flexibility allows surveyors to customize their equipment for each job.
Recommended Payloads for Public Safety and Emergency Response
For public safety teams, emergency responders, and search & rescue units, payloads must deliver clarity, range, thermal sensitivity, and robustness. Based on current specifications, here are top options:
- Zenmuse H30T
A high-end multisensor payload combining a wide-angle camera with high resolution, a powerful zoom camera, a high-resolution thermal imager (1280×1024), a laser rangefinder up to 3,000 m, and enhanced night scene capability with near-infrared auxiliary lighting. Its ingress protection and sensor specs make it reliable for dark or adverse conditions. - Zenmuse H20T / Zenmuse H20N
Solid choices for less demanding situations. Thermal imaging works, but at lower resolution. Zoom is decent but not as far. Night vision is available (especially in H20N), but image clarity and features are less advanced compared to H30T. - Zenmuse V1 Loudspeaker Module
A powerful speaker attachment for Matrice 400 that lets teams broadcast clear voice messages or alerts during emergencies, crowd control, or search and rescue operations. - Zenmuse S1 Spotlight Module
A high-intensity spotlight designed for low-light missions, ideal for illuminating large areas, guiding evacuees, or assisting night search operations.
Together, these payloads and add-ons give Matrice 400 operators the ability to see farther, detect heat sources with more precision, communicate with people on the ground, and light up dark environments — all from a single aircraft platform.
DJI Payloads and Add-ons for Public Safety and Emergency Response
| Payload / Add-on | Key Features | Best Use Cases | Notable Specs |
| Zenmuse H30T | 40× hybrid zoom, 1200× max zoom, 1280×1024 thermal resolution, laser rangefinder up to 3,000 m | Search & Rescue, Firefighting, Disaster Assessment | High-res thermal and night imaging, clearer details in low-light |
| Zenmuse H30 Hybrid | 34× hybrid zoom, 200× max zoom, 640×512 thermal resolution | Law Enforcement, Crowd Monitoring | Balanced optical + thermal at lighter weight |
| Zenmuse H20T | 23× hybrid zoom, 640×512 thermal resolution, laser rangefinder up to 1,200 m | Inspection, Utility Monitoring | Proven reliable sensor suite |
| Zenmuse H20N | Starlight sensors + dual zoom, 640×512 thermal | Night Search & Rescue, Maritime Ops | Excellent low-light performance |
| DJI Loudspeaker V1 | Broadcast voice/audio in real time up to 100 dB | Evacuation orders, crowd control, emergency comms | Compatible with M400, lightweight |
| DJI Spotlight S1 | High-intensity beam (20–30° adjustable), long-distance illumination | Night-time SAR, disaster site lighting | Remote angle control, steady beam |
Making the Right Choice
The DJI Matrice 400 paired with the right payloads is more than just a flying platform. It is a versatile tool designed to handle demanding professional missions. From high-resolution mapping with the Zenmuse L2 and DJI Terra, to clear visual and thermal intelligence with the H30T, and enhanced response capabilities with loudspeakers and spotlights, the M400 can adapt to almost any operational need.
Whether you’re in public safety, surveying, infrastructure inspection, or emergency response, unlocking the full power of the Matrice 400 starts with choosing the right combination of payloads and software to match your mission goals. The result: faster workflows, sharper data, and a decisive advantage where it matters most.
Ready to build your ultimate M400 setup? Dynatech Innovations provides the full range of DJI equipment, payloads, and accessories — backed by expert training and support to help your team hit the ground running. Get in touch and see how the right configuration can elevate your operations to the next level.
